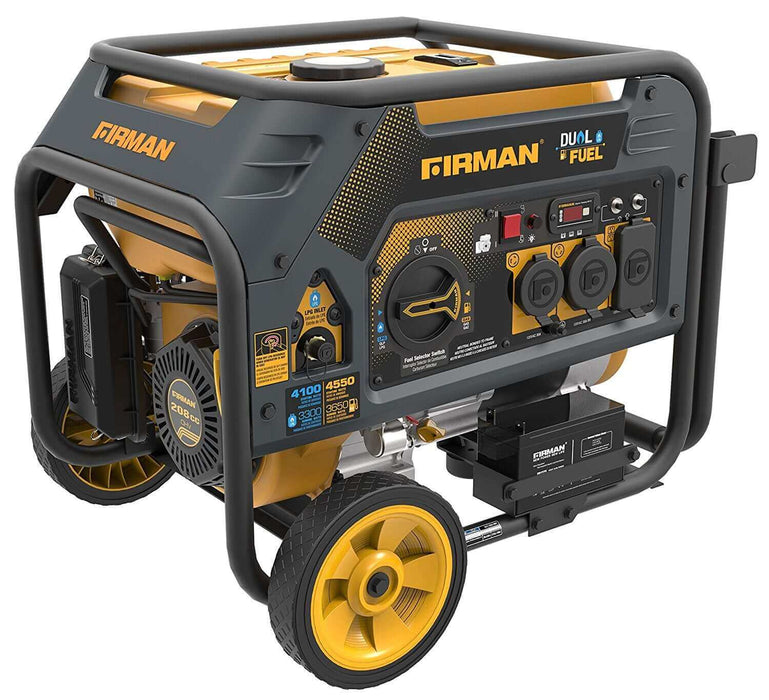

Firman Generator H03651 Hybrid Series DUAL FUEL (Propane or Gas) 3650 Watt

Product Description

Please contact us for shipping quotes

Product Description

The FIRMAN H03651 generator features 4550 starting Watts and 3650 running watts (4100/3300 LPG). Power is supplied by our Max Pro Series 208cc FIRMAN engine which runs cool and efficient thanks to its Phoenix Fat Head Block. Our Whisper Series muffler keeps the H03651 running at a quiet 67 decibels – well below the standards set by the National Parks Service, and our spark arrester has been approved by the USDA Forest Service. The industry-leading 5 gallon fuel capacity provides a whopping 14 hours of run time. Starting is as simple as the push of a button on the H03651. All of our Hybrid Series Generators run on gasoline or propane fuel, giving you flexibility while out on the road or during an emergency. H03651 comes standard with extended propane hose (5.5ft) for convenience when running off a larger propane tank.

The FIRMAN Volt Lock automatic voltage regulator ensures clean, consistent power output from the FIRMAN Power Stream alternator. For the ultimate in portability the H03651 includes a wheel kit featuring 8” never-flat wheels and a u-shaped padded handle with ergonomic grip. Pertinent information is at your fingertips with our 3-in-1 data minder measuring Volts, Hertz, Hours and a low oil indicator. The durable, compact tubular roll cage frame design is built for years of use. Everything you need comes standard in the box including: oil, funnel, owner’s manual, spark plug wrench, and two wrenches to remove protective shipping brackets.

● Model – H03651
● Run on gasoline or propane fuel, giving you flexibility while out on the road or during an emergency.
● Extended propane regulator/hose (5.5ft) for convenience when running off of a larger propane tank.
● The FIRMAN 0HV engine (Max-Pro Series) for longer life/higher performance/lower maintenance.
● FIRMAN newly designed AVR (Automatic Voltage Regulator) VL (Volt-Lock) Series.
● Cast iron sleeved engine for long durability with automatic low oil shutdown protection.
● Largest tank in the industry with extended run-time (less re-fueling) with integrated fuel gauge for convenience.
● Quiet muffler (Whisper Series) with USDA FS certified spark arrester.
● Conveniently located multi-featured control panel with FIRMAN custom designed outlet cover protecting outlets from dirt, dust and debris.
● 3 in 1 Data-Minder monitors running hours, voltage and frequency.
● Wheel Kit with heavy duty and over size flat free wheels with high leverage single folding handle with grip for easy maneuver.
● Durable compact roll-cage frame design with 1.2″ steel tubing.
● Bonus accessories including engine oil funnel and tool kit.
● Included battery for your convenience.
● 3 year warranty: best industry.

Model / Rev Level H03651 / 00
REGS
EPA (49 STATES) YES
CARB (50 STATES) YES
cETL (CANADA) YES
OUTPUT
Running (RATED) Watts – Gas 3650
Starting (SURGE) Watts – Gas 4550
Running (RATED) Watts – LP 3300
Starting (SURGE) Watts – LP 4100
AC Voltage (VOLTS) 120
Frequency (Hz) 60
Engine Displacement (cc) 208
Recoil Start YES
Electric Start YES
Remote Start
Low Oil Shut Off YES
Power Stream Alternator YES
Cast Iron Sleeve YES
Fuel Gas / LPG
Propane Hose 5.5ft
Excitation System Brushed
THD@Full Load 25
Runtime @ 50% LOAD 14
dB @ 7m @ 3/4 LOAD 75
Runtime @ 25% LOAD
dB @ 7m @1/4 LOAD
CONTROL PANEL
5-20R 120V 20A Duplex 2
5-20R 120V 20A SINGLE
5-20R 120V 20A Duplex GFCI
5-20R 120V 20A Duplex with Integrated USB 3.1A
L5-30R 120V 30A Twistlock 1
TT-30R 120V 30A RV 1
L14-30R 120V/240V 30A Twistlock
14-50R 120V/240V 50A
USB Outlet(5V 2.1A)
DC Outlet 12V/TYPE
Charging Port for Battery
Parallel Port
Outlet Cover YES
Voltage Selector
Engine ON/OFF Switch YES (Push Button)
Phoenix Fat Head Block YES
Battery Switch
Battery Power Restore Switch
Programming Button for Remote
Idle Control Switch
Fuel Selector YES
Power/Low Oil/Overload Indicator Lights
Voltmeter
FUEL SYSTEM
Tank Size (Gallon/Litre) 5.0/19.0
Steel/Plastic Steel
Fuel Gauge on Cap YES
Bottle Opener
WHEEL KIT
Wheel(Size/Type/Color) 8.0″ -Black -Plastic -Flat Free
Handle U-Shaped Padded Handle
Foot Bracket Hat Shape w/ 2xRubber Isolator
USDA FS Certified Spark Arrester YES
ACCESSORIES
Engine Oil (Bottle) YES
Oil Funnel YES
Tool Kit SP wrench – 2xOpen Wrench 10×12
12V Battery Cable
Remote Control
LPG Regulator (1.5m) YES
Volt Lock Automatic Voltage Regulator (AVR) YES
Floater Charger for Battery
Cover
Remote Holder
Quick Oil Drain
“Power Cord
(L14-30P to 6×5-20R -10AWG-18ft with circuit breakers)”
PACKAGING
Warranty Residential / Commercial 3years Ltd / 90days
LXWXH (inch) (CARTON) 28.5″x21.1″x20.7″
NET WEIGHT (unit with wheel kit)(lbs) 119.5
GROSS WEIGHT (unit with wheel kit, accessories, carton, foams, insert) (lbs) 134.5
UPC 840876136515
$688.00 CAD
