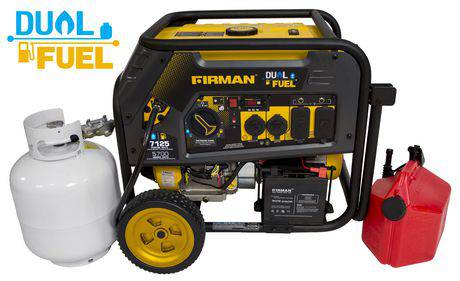

Firman Generator H05753 Hybrid Series DUAL FUEL (Propane or Gas) 5700 Watt
Please contact us for shipping quotes

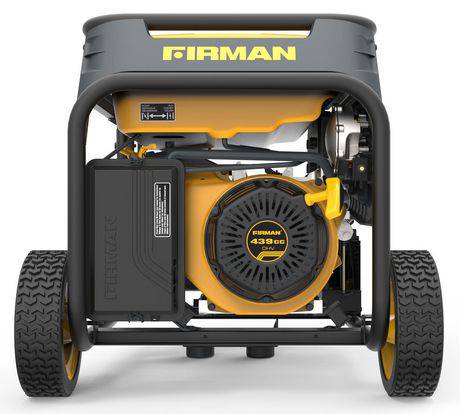

The FIRMAN H05753 generator features 7100 starting Watts and 5700 running watts. Power is supplied by our Max Pro Series 439cc FIRMAN engine which runs cool and efficient thanks to its Phoenix Fat Head Block. Our Whisper Series muffler keeps the H05753 running at a quiet 74 decibels – well below the standards set by the National Parks Service, and our spark arrester has been approved by the USDA Forest Service. The industry-leading 8 gallon fuel capacity provides a whopping 13 hours of run time. Starting is as simple as the push of a button on the H05753. All of our Hybrid Series Generators run on gasoline or propane fuel, giving you flexibility while out on the road or during an emergency. H05753 comes standard with extended propane hose (5.5ft) for convenience when running off a larger propane tank.
The FIRMAN Volt Lock automatic voltage regulator ensures clean, consistent power output from the FIRMAN Power Stream alternator. For the ultimate in portability the H05753 includes a wheel kit featuring 10” never-flat wheels and a u-shaped padded handle with ergonomic grip. Pertinent information is at your fingertips with our 3-in-1 data minder measuring Volts, Hertz, Hours and a low oil indicator. The durable, compact tubular roll cage frame design is built for years of use. Everything you need comes standard in the box including: oil, funnel, owner’s manual, spark plug wrench, and two wrenches to remove protective shipping brackets.
● Model – H05753
● Run on gasoline or propane fuel, giving you flexibility while out on the road or during an emergency.
● Extended propane regulator/hose (5.5ft) for convenience when running off of a larger propane tank.
● The FIRMAN 0HV engine (Max-Pro Series) for longer life/higher performance/lower maintenance.
● FIRMAN newly designed AVR (Automatic Voltage Regulator) VL (Volt-Lock) Series.
● Cast iron sleeved engine for long durability with automatic low oil shutdown protection.
● Largest tank in the industry with extended run-time (less re-fueling) with integrated fuel gauge for convenience.
● Quiet muffler (Whisper Series) with USDA FS certified spark arrester.
● Conveniently located multi-featured control panel with FIRMAN custom designed outlet cover protecting outlets from dirt, dust and debris.
● 3 in 1 Data-Minder monitors running hours, voltage and frequency.
● Wheel Kit with heavy duty and over size flat free wheels with high leverage single folding handle with grip for easy maneuver.
● Durable compact roll-cage frame design with 1.2″ steel tubing.
● Bonus accessories including engine oil funnel and tool kit.
● Included battery for your convenience.
● 3 year warranty: best industry.
|Model / Rev Level||H05753 / 00|
|EPA (49 STATES)||YES|
|CARB (50 STATES)||YES|
|Running (RATED) Watts – Gas||5700|
|Starting (SURGE) Watts – Gas||7125|
|Running (RATED) Watts – LP||5700|
|Starting (SURGE) Watts – LP||7125|
|AC Voltage (VOLTS)||120/240|
|Engine Displacement (cc)||439|
|Low Oil Shut Off||YES|
|Power Stream Alternator||YES|
|Cast Iron Sleeve||YES|
|Fuel||Gas / LPG|
|Fuel Tank Volume (Gal)||8.0|
|Runtime @ 50% LOAD (hours)||13|
|dB @ 7m @ 3/4 LOAD||82|
|Runtime @ 25% LOAD|
|dB @ 7m @1/4 LOAD|
|5-20R 120V 20A Duplex|
|5-20R 120V 20A SINGLE|
|5-20R 120V 20A Duplex GFCI||2|
|5-20R 120V 20A Duplex with Integrated USB 3.1A|
|L5-30R 120V 30A Twistlock||1|
|TT-30R 120V 30A RV|
|L14-30R 120V/240V 30A Twistlock||1|
|14-50R 120V/240V 50A|
|USB Outlet(5V 2.1A)|
|DC Outlet 12V/TYPE|
|Charging Port for Battery|
|Engine ON/OFF Switch||YES (Push Button)|
|Phoenix Fat Head Block||YES|
|Battery Power Restore Switch|
|Programming Button for Remote|
|Idle Control Switch|
|Power/Low Oil/Overload Indicator Lights|
|Tank Size (Gallon/Litre)||8.0/30.0|
|Fuel Gauge on Cap||YES|
|Wheel(Size/Type/Color)||10.0″ -Black -Plastic -Flat Free|
|Handle||U-Shaped Padded Handle|
|Foot Bracket||Hat Shape w/ 2xRubber Isolator|
|USDA FS Certified Spark Arrester||YES|
|Engine Oil (Bottle)||YES|
|Tool Kit||SP wrench – 2xOpen Wrench 10×12|
|12V Battery Cable|
|LPG Regulator （1.5m）||YES|
|Automatic Voltage Regulator (AVR)||YES|
|Floater Charger for Battery|
|Quick Oil Drain|
(L14-30P to 6×5-20R -10AWG-18ft with circuit breakers)”
|Warranty Residential / Commercial||3years / 90days|
|LXWXH (inch) (CARTON)||32.1×22.2×24.4|
|NET WEIGHT (unit with wheel kit)(lbs)||196|
|GROSS WEIGHT (unit with wheel kit, accessories, carton, foams, insert) (lbs)||212|
