FIRMAN Generator P05702 Performance Series 7125W/5700W Remote/Electric/Recoil Start
Please contact us for shipping quotes
CERTIFICATITONS:

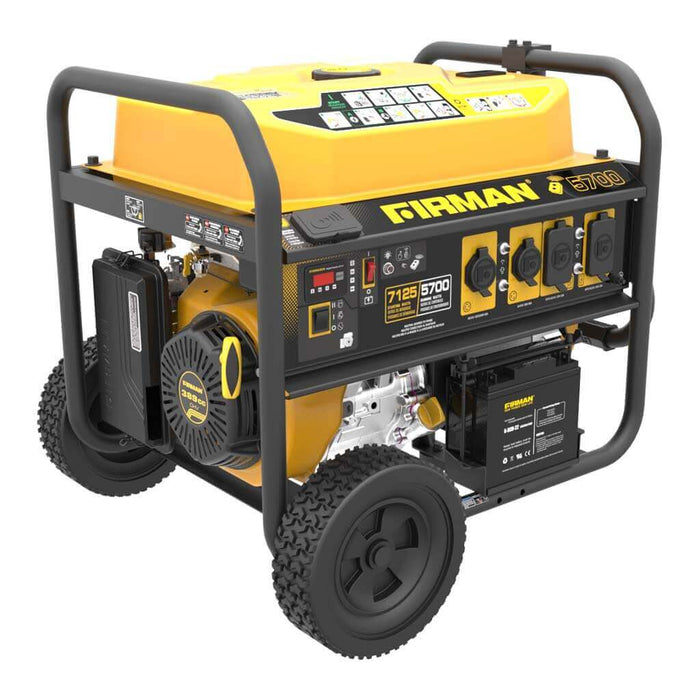

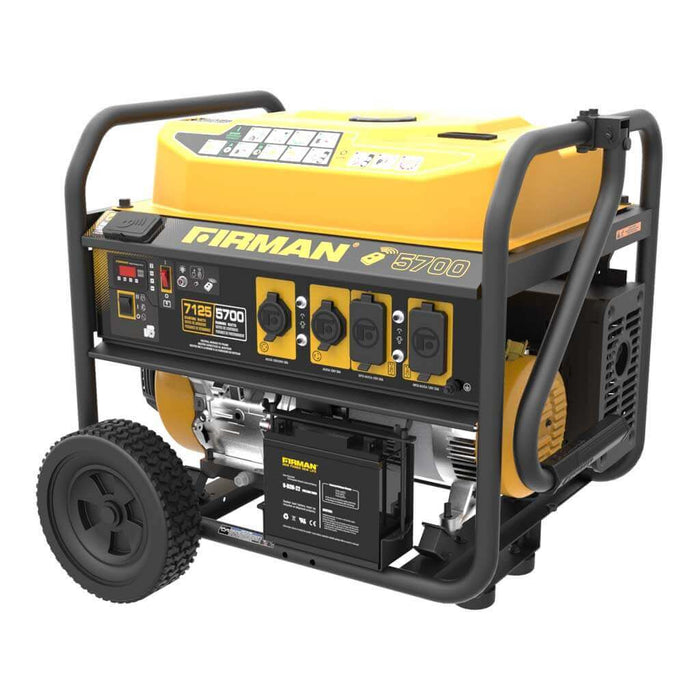

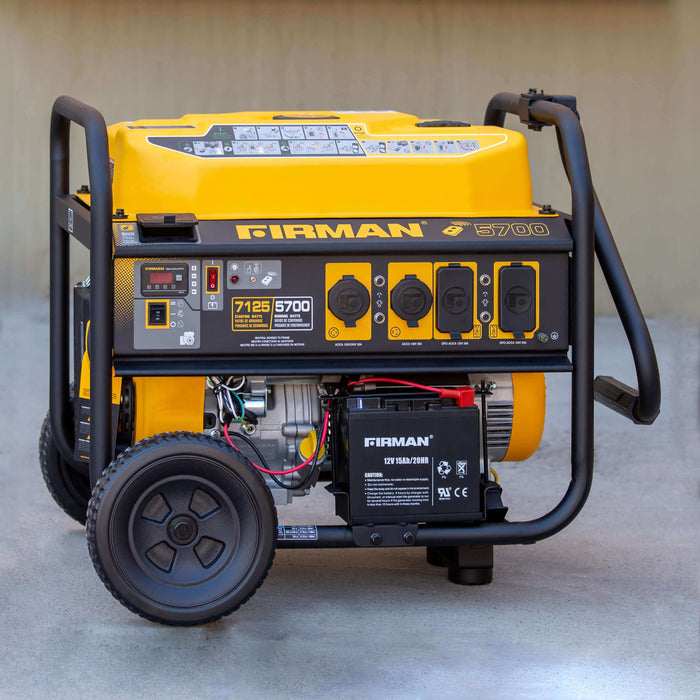

The FIRMAN P05702 is a powerful 7125 watt 30A power generator. This beast is an electric and remote start generator.The Max Pro Series 389cc engine runs cool and efficient thanks to the Phoenix Fat Head Block. The P05702 runs at 74dB with an 8gal fuel tank provides a whopping 12hrs of run-time. For ultimate portability, the P05702 includes a 10” wheel-kit and high leverage folding handle. Easy information is at your fingertips with a 4-in-1 data minder measuring Volts, Hertz, hrs and low oil indicator. With a durable roll cage frame design, the P05702 is built for work!
Note: Everything you need is in the box including: oil, funnel, owner’s manual, and spark plug wrench.
FEATURES
- 7125 Starting Watts / 5700 Running Watts
- 389cc Performance engine With low oil shut off and cast iron sleeve
- 8 gal Tank Provides 12hrs of run-time
- Multi feature control panel with covered outlets
- 10″ Heavy Duty Wheels and High Folding Handle
- Outlets:
- (4) 5-20R 20A-120V GFCI
- (1) L14-30R 30A-120V/240V Twistlock
- (1) L5-30R 30A-120V Twistlock
- Weight – 214 Lbs
- Carton Measurements – 31.9″ X 22.1″ X 24.4″
- 3 year warranty
P05702 SPECIFICATIONS
REGS | |
EPA (49 STATES) | YES |
---|---|
OUTPUT | |
Running (RATED) Watts – Gas | 5700 |
Starting (SURGE) Watts – Gas | 7100 |
AC Voltage (VOLTS) | 120/240 |
Frequency (Hz) | 60 |
Engine Displacement (cc) | 389 |
Recoil Start | YES |
Electric Start | YES |
Remote Start | YES |
Low Oil Shut Off | YES |
Power Stream Alternator | YES |
Cast Iron Sleeve | YES |
Fuel | Gas |
Excitation System | Brushed |
THD@Full Load | 25 |
Runtime @ 50% LOAD | 13 |
CONTROL PANEL | |
5-20R 120V 20A Duplex GFCI | 2 |
L5-30R 120V 30A Twistlock | 1 |
L14-30R 120V/240V 30A Twistlock | 1 |
Outlet Cover | YES |
Engine ON/OFF Switch | YES (Push Button) |
Phoenix Fat Head Block | YES |
Battery Switch | YES |
Programming Button for Remote | YES |
FUEL SYSTEM | |
Tank Size (Gallon/Litre) | 8.0/30.0 |
Steel/Plastic | Steel |
Fuel Gauge on Cap | YES |
WHEEL KIT | |
Wheel(Size/Type/Color) | 10.0″ -Black -Plastic -Flat Free |
Handle | Single Folding w/ Grip |
Foot Bracket | Hat Shape w/ 2xRubber Isolator |
USDA FS Certified Spark Arrester | YES |
ACCESSORIES | |
Engine Oil (Bottle) | YES |
Oil Funnel | YES |
Tool Kit | SP wrench – 2xOpen Wrench 10×12 |

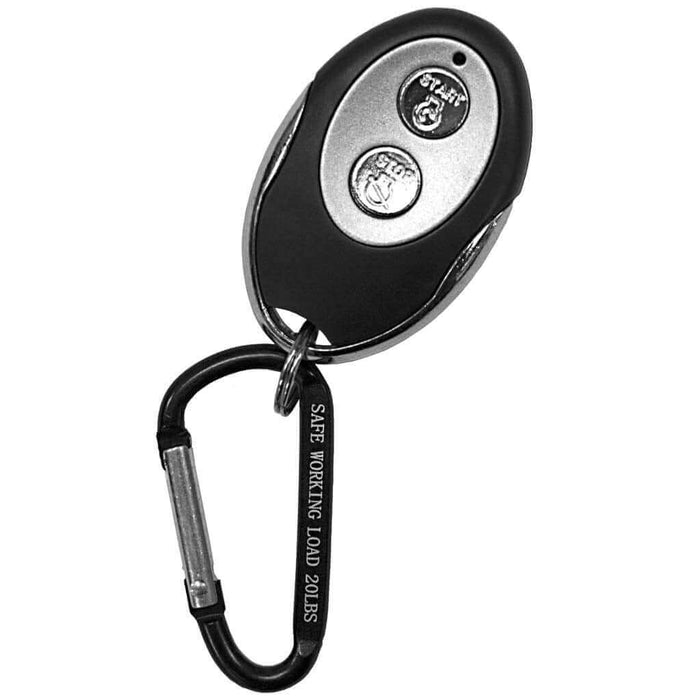

Remote Control | YES |
Volt Lock Automatic Voltage Regulator | YES |
Remote Holder | YES |
PACKAGING
LXWXH (inch) (CARTON) | 31.7”x21.7”x24.4” |
---|---|
NET WEIGHT (unit with wheel kit)(lbs) | 188.5 |
GROSS WEIGHT (unit with wheel kit, accessories, carton, foams, insert) (lbs) | 214 |
UPC | 840876157022 |
WARRANTY
Residential / Commercial | 3 years Ltd / 90 days |
---|
