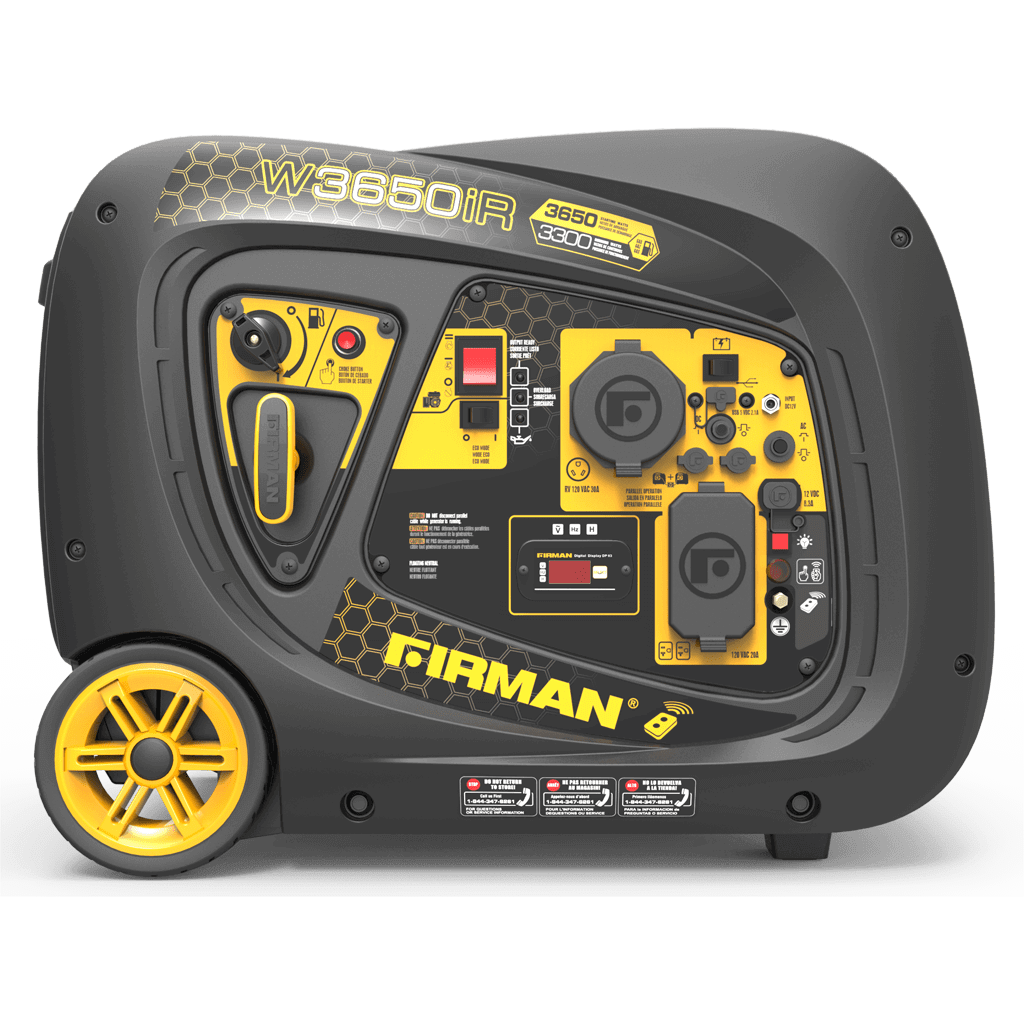

Please contact us for shipping quotesThe FIRMAN W03383 Inverter generator features 3650 starting watts and 3300 running watts. Power is supplied by our Max Pro Series 193cc FIRMAN engine which runs cool and efficient thanks to its Phoenix Fat Head Block. Our Whisper Series muffler keeps the W03383 running a quiet 58 decibels – well below the standards set by the National Parks Service, and our spark arrester has been approved by the USDA Forest Service. The 1.8-gallon fuel capacity provides a whopping 8 hours of run time. Starting is simple with the click of a button with the FIRMAN remote start system.
The FIRMAN Volt Lock automatic voltage regulator ensures clean, consistent power output from the FIRMAN Power Stream alternator. For the ultimate in portability the W03383 is less than 94.8 lbs. with a built Tuff-Stuff handle and wheel kit. Major touch points are all front and center for easy starting and use, power, choke, eco-mode and all receptacles are conveniently located for easy access. The durable, lightweight, powerful inverter is built for years of use. Just add gas! Everything you need comes standard in the box including: oil, funnel, owner’s manual and, spark plug wrench.
- 193cc engine with low oil shut off and cast iron sleeves
- 1.8 gallon tank provides up to 8 hours of runtime
- Less than 3% THD-Clean power
- Delivers true 30A power
- Multi feature control panel with covered outlets
- Includes engine oil, funnel and FIRMAN assembly tool kit
- 3 year warranty
|EPA (49 STATES)||YES|
|CARB (50 STATES)||YES|
|Running (RATED) Watts – Gas||3300|
|Starting (SURGE) Watts – Gas||3650|
|AC Voltage (VOLTS)||120|
|Engine Displacement (cc)||193|
|Low Oil Shut Off||YES|
|Power Stream Alternator||YES|
|Cast Iron Sleeve||YES|
|Runtime @ 25% LOAD||9|
|5-20R 120V 20A Duplex||1|
|TT-30R 120V 30A RV||1|
|USB Outlet(5V 2.1A)||1|
|DC Outlet 12V/TYPE||1×2 Prong Angled|
|Engine ON/OFF Switch||YES|
|Phoenix Fat Head Block||YES|
|Idle Control Switch||YES|
|Power/Low Oil/Overload Indicator Lights||YES|
|Tank Size (Gallon/Litre)||1.8/8|
|Fuel Efficient Economy Mode||YES|
|Wheel(Size/Type/Color)||5.0″ -Yellow -Plastic -Flat Free|
|Handle||U Shape Folding Handle|
|Foot Bracket||2xRubber Isolator|
|USDA FS Certified Spark Arrester||YES|
|Engine Oil (Bottle)||YES|
|Tool Kit||SP wrench – Screw Driver|
|12V Battery Cable||YES|
|Volt Lock Automatic Voltage Regulator||YES|
|Quick Oil Drain||YES|
|LXWXH (inch) (CARTON)||26.6″x18.5″x19.7″|
|NET WEIGHT (unit with wheel kit)(lbs)||84|
|GROSS WEIGHT (unit with wheel kit, accessories, carton, foams, insert) (lbs)||94.8|
|Residential / Commercial||3 years Ltd / 90 days|
