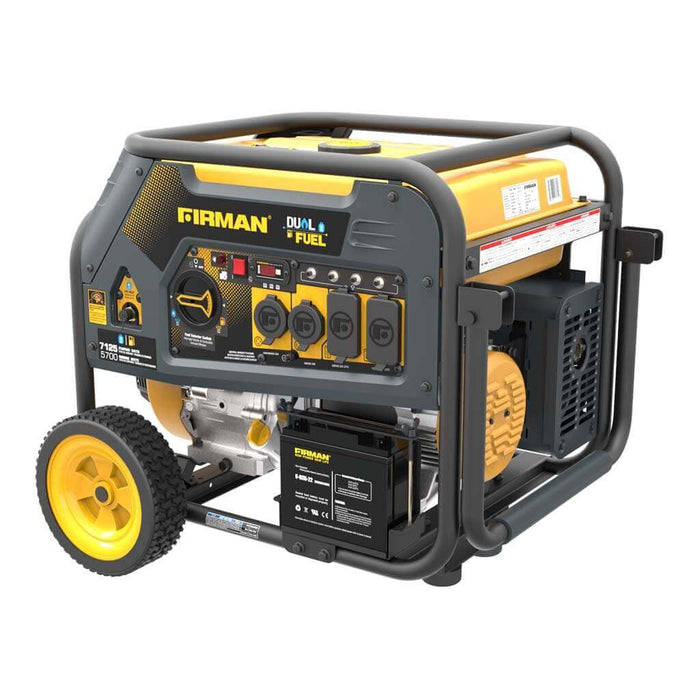

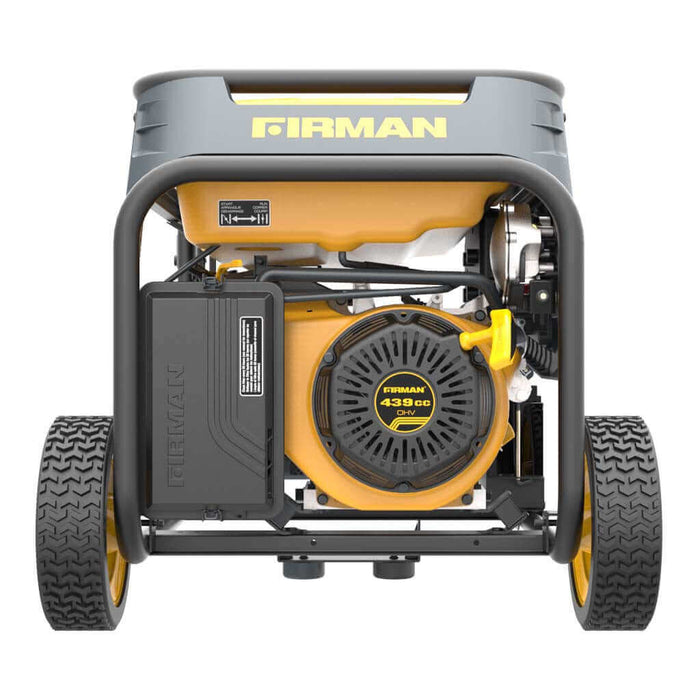

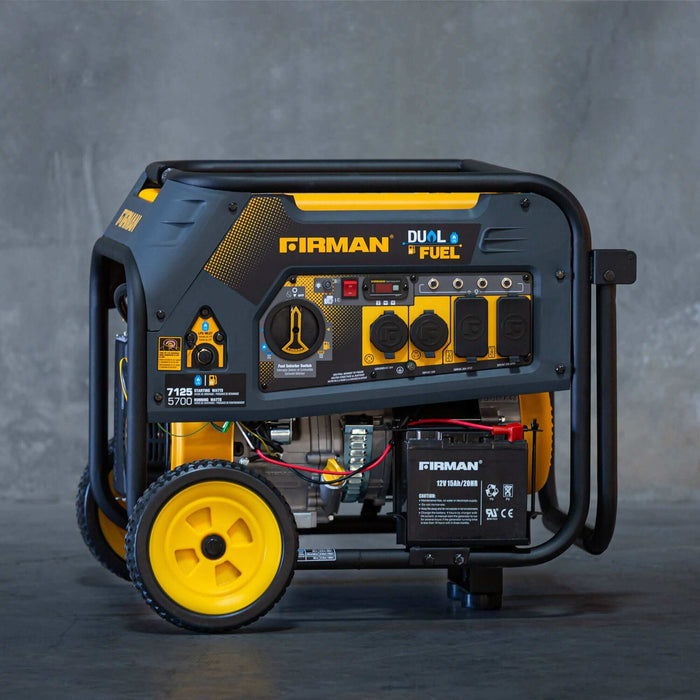

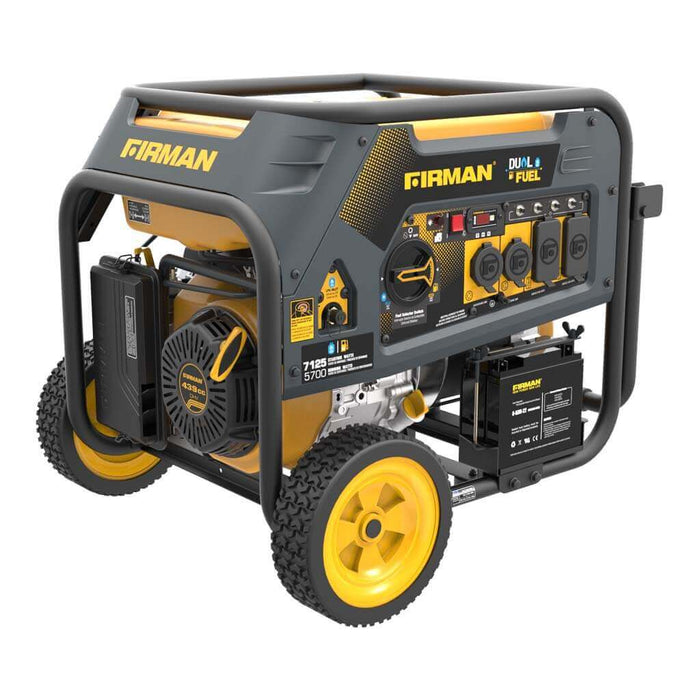

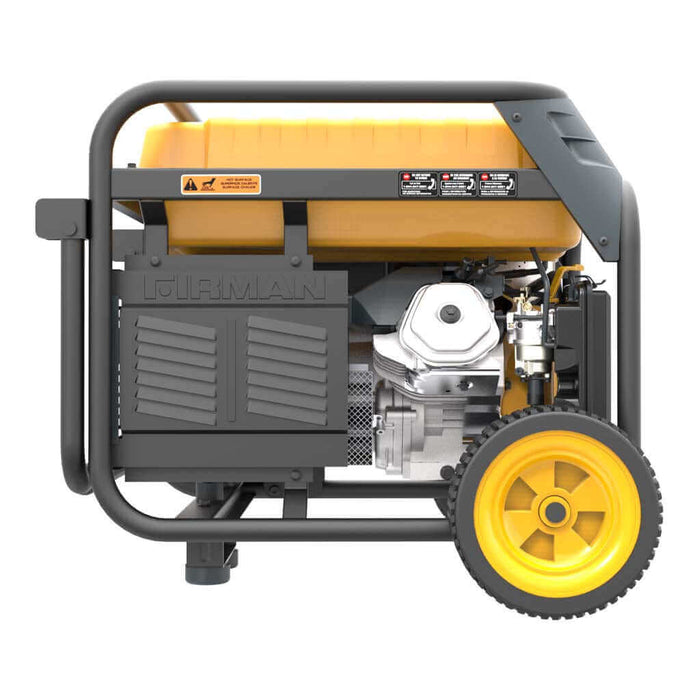

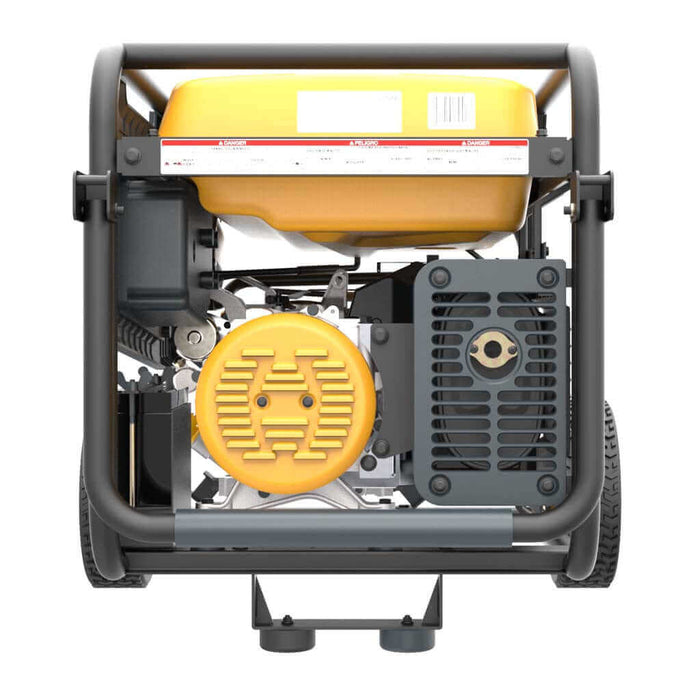

Firman Generator H05751 Hybrid Series DUAL FUEL (Propane or Gas) 7125W/ 5700W Electric/Recoil Start
CERTIFIED FOR US ONLY!
CERTIFICATITONS:

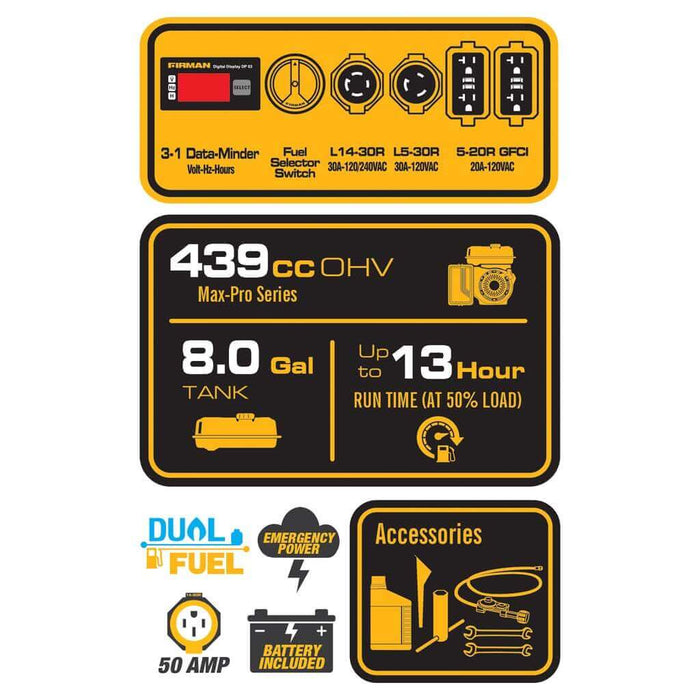

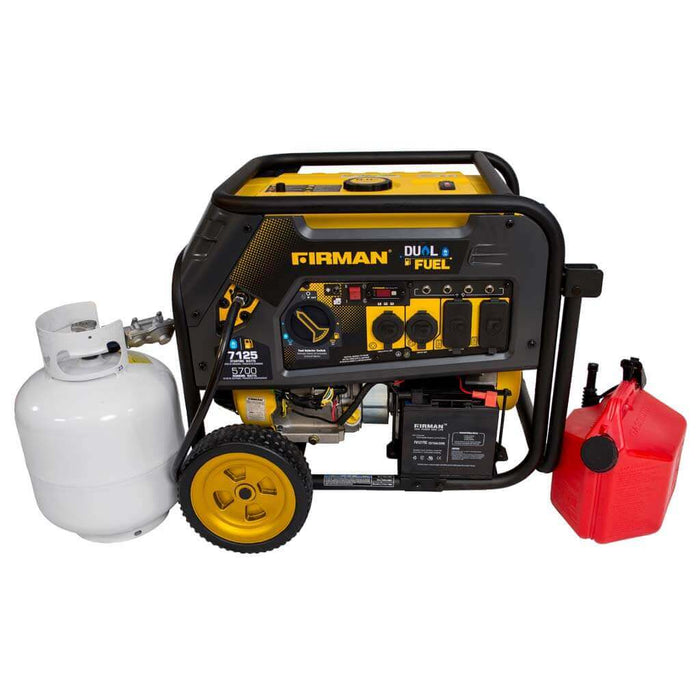

The FIRMAN H05751 is a powerful 7125 watt generator. The Max Pro Series 439cc engine runs cool and efficient thanks to its Phoenix Fat Head Block. The H05751 runs at 74dB and is California emissions certified. With an electric start system, the 8gal tank will provide power for 12hrs fulfilling all your needs. All Hybrid Series run on gas or propane, giving you flexibility. The H05751 has a 5.5ft propane hose for convenience using larger propane tanks and includes a 10” wheel-kit and folding handle. Easy information is at your fingertips with a 3-in-1 data minder measuring Hrs, Volts, and Hertz. Get the job done!

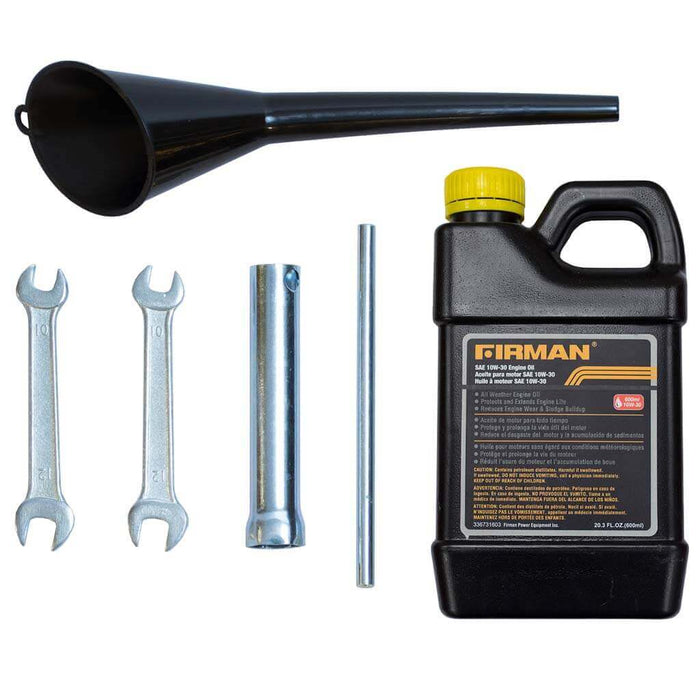

Note: Everything you need is in the box including: oil, funnel, owner’s manual, and spark plug wrench.
FEATURES
- 7125 Starting Watts / 5700 Running Watts – Gas
- 7125 Starting Watts / 5700 Running Watts – LPG
- 8 Gallon Tank
- 12 hour run-time
- Outlets:
- (4) 5-20R 20A-120V GFCI
- (1) L14-30R 30A 120V/240V TWISTLOCK
- (1) L5-30R 30A-120V TWISTLOCK
- Multi feature control panel with covered outlets
- 10″ Heavy Duty Wheels and High Folding Handle
- Includes engine oil, funnel and assembly tool kit and 5.5 ft LPG regulator hose
- 439cc Dual Fuel engine with low oil shut off and cast iron sleeve
- Phoenix Fat Head Block for enhanced engine efficiency
- Weight – 212 Lbs
- Carton Measurements – 32.1″ x 22.2″ x 24.4″
- 3 Year Warranty
H05751 SPECIFICATIONS
REGS | |
EPA (49 STATES) | YES |
---|---|
CARB (50 STATES) | YES |
OUTPUT | |
Running (RATED) Watts – Gas | 5700 |
Starting (SURGE) Watts – Gas | 7125 |
Running (RATED) Watts – LP | 5700 |
Starting (SURGE) Watts – LP | 7125 |
AC Voltage (VOLTS) | 120/240 |
Frequency (Hz) | 60 |
Engine Displacement (cc) | 439 |
Recoil Start | YES |
Electric Start | YES |
Low Oil Shut Off | YES |
Power Stream Alternator | YES |
Cast Iron Sleeve | YES |
Fuel | Gas / LPG |
Propane Hose | 5.5ft |
Excitation System | Brushed |
THD@Full Load | 25 |
Runtime @ 50% LOAD | 13 |
CONTROL PANEL | |
5-20R 120V 20A Duplex GFCI | 2 |
L5-30R 120V 30A Twistlock | 1 |
L14-30R 120V/240V 30A Twistlock | 1 |
Outlet Cover | YES |
Engine ON/OFF Switch | YES (Push Button) |
Phoenix Fat Head Block | YES |
Fuel Selector | YES |
FUEL SYSTEM | |
Tank Size (Gallon/Litre) | 8.0/30.0 |
Steel/Plastic | Steel |
Fuel Gauge on Cap | YES |
WHEEL KIT | |
Wheel(Size/Type/Color) | 10.0″ -Black -Plastic -Flat Free |
Handle | U-Shaped Padded Handle w/ Grip |
Foot Bracket | Hat Shape w/ 2xRubber Isolator |
USDA FS Certified Spark Arrester | YES |
ACCESSORIES | |
Engine Oil (Bottle) | YES |
Oil Funnel | YES |
Tool Kit | SP wrench – 2xOpen Wrench 10×12 |
LPG Regulator (1.5m) | YES |
Volt Lock Automatic Voltage Regulator (AVR) | YES |
PACKAGING
LXWXH (inch) (CARTON) | 32.1″x21.2″x24.4″ |
---|---|
NET WEIGHT (unit with wheel kit)(lbs) | 196 |
GROSS WEIGHT (unit with wheel kit, accessories, carton, foams, insert) (lbs) | 212 |
UPC | 840876157510 |
WARRANTY
Residential / Commercial | 3 years Ltd / 90 days |
---|
