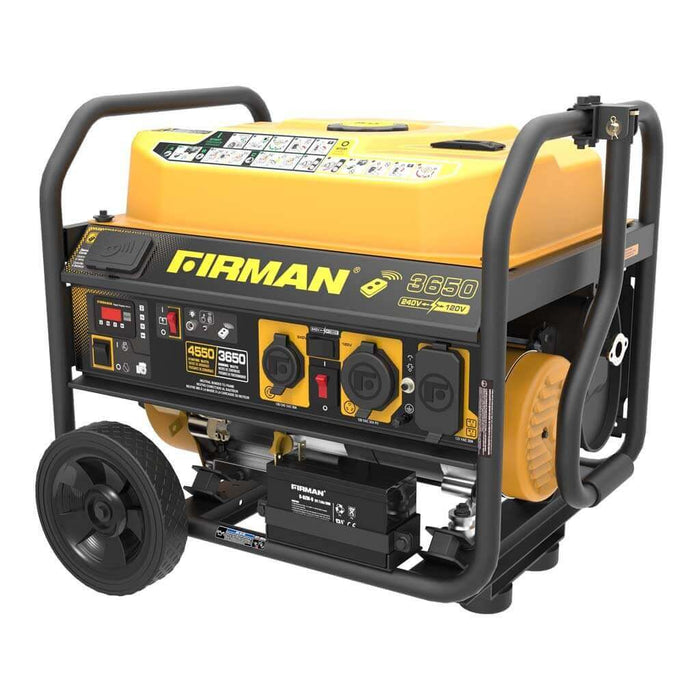

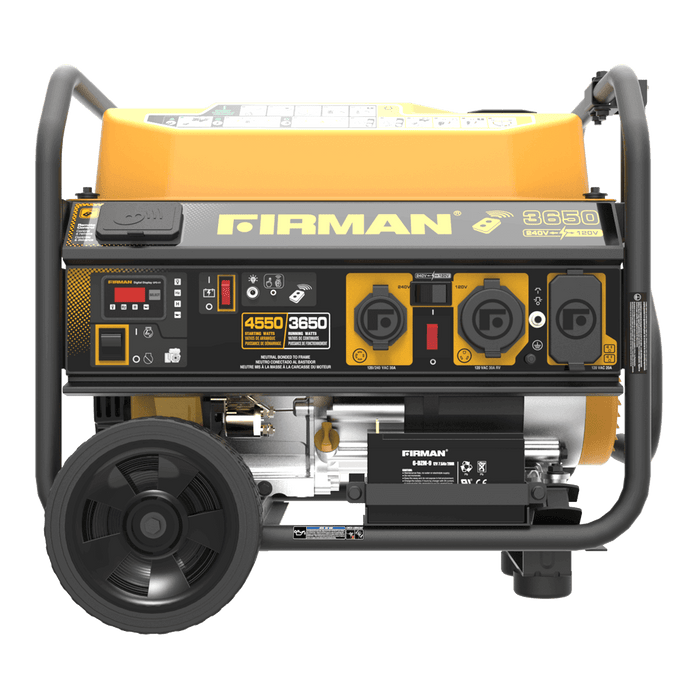

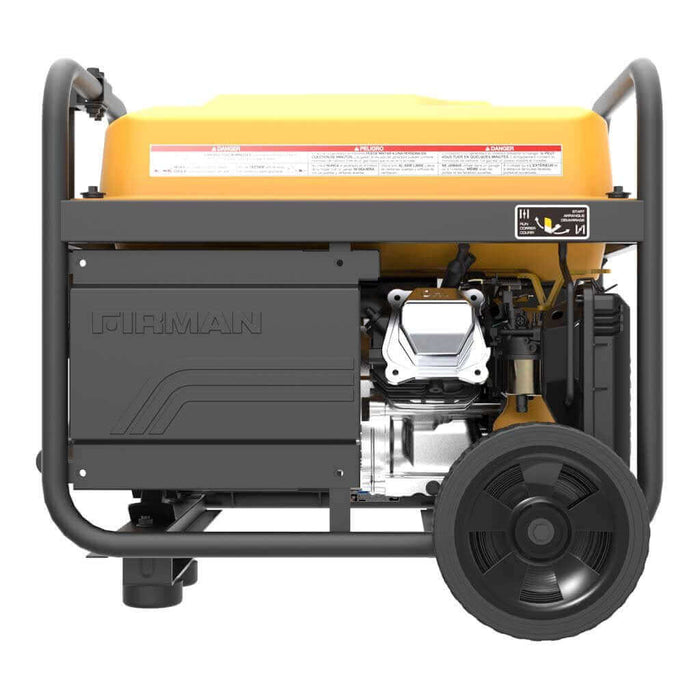

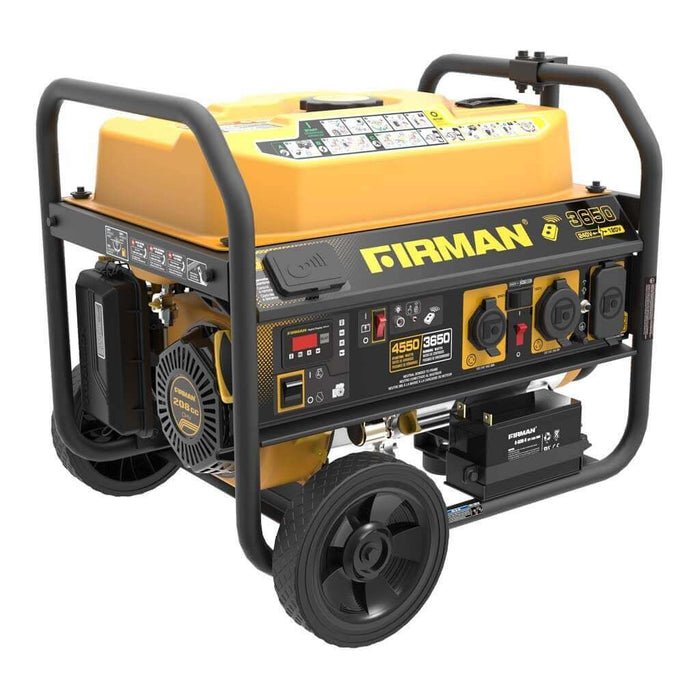

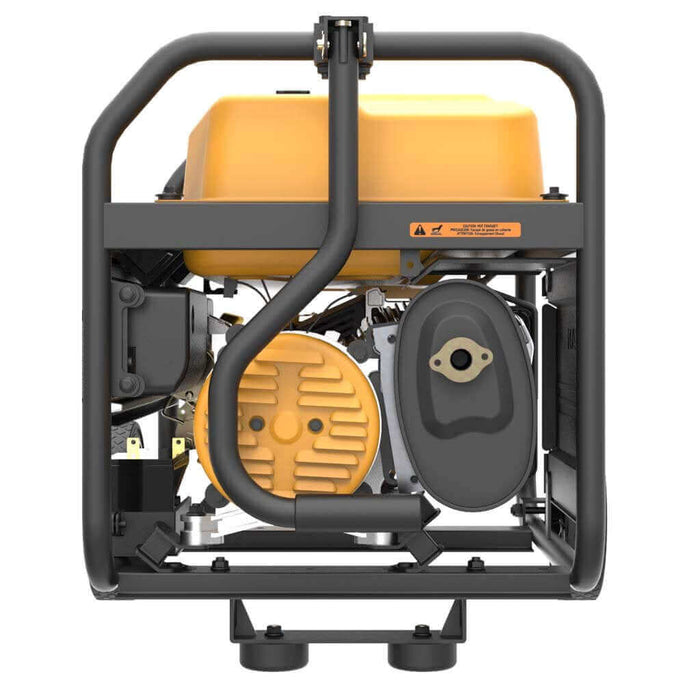

The P03612 is an open frame portable generator with 120V/240V selectable power. This generator has an ergonomic handle and never-flat wheels for easy transport during those weekend camping getaways or portable backup power. It features 4550 starting watts and 3650 running watts, with a recoil, electric and remote start system for ease of use. The P03612 is backed by our Legendary 3 year warranty.
Product Description
The FIRMAN P03612 generator features 4550 starting Watts and 3650 running watts. 120V/240V selectable Voltage is supplied by our Max Pro Series 208cc FIRMAN engine which runs cool and efficient thanks to its Phoenix Fat Head Block. Our Whisper Series muffler keeps the P03612 running a quiet 67 decibels – well below the standards set by the National Park Service, and our spark arrester has been approved by the USDA Forest Service. The industry-leading 5 gallon fuel capacity provides a whopping 14 hours of run time. Our rubberized Thresher handle makes recoil starting a snap – even with bulky gloves, and for ease of use we have included a battery for electric and remote start!
The FIRMAN Volt Lock automatic voltage regulator ensures clean, consistent power output from the FIRMAN Power Stream alternator. For the ultimate in portability the P03612 includes a wheel kit featuring 8” never-flat wheels and a high leverage single folding handle with ergonomic grip. Pertinent information is at your fingertips with our 4-in-1 data minder measuring Volts, Hertz, Hours and a low oil indicator. The durable, compact tubular roll cage frame design is built for years of use. Just add gas! Everything you need comes standard in the box including: oil, funnel, owner’s manual, spark plug wrench, quick reference guide, and two wrenches to remove protective shipping brackets and assemble the Wheel Kit.
Features
- 4550 Starting Watts / 3650 Running Watts
- 120/240 Volt with Voltage Selector Switch
- 5 Gallon Tank
- 14 hour Run Time
- Outlets – (1) TT-30R (RV Ready) 120V – 30A, (1) L14-30R 120V – 30A Twistlock, (1) 5-20R Duplex 120V – 20A
- Recoil Start, Electric Start, Remote Start/Stop from a distance of 168 Feet
- Volt Lock Automatic Voltage Regulator
- Wheel Kit with 8” Heavy Duty Never-Flat Wheels and high leverage single folding handle
- Power Stream Alternator

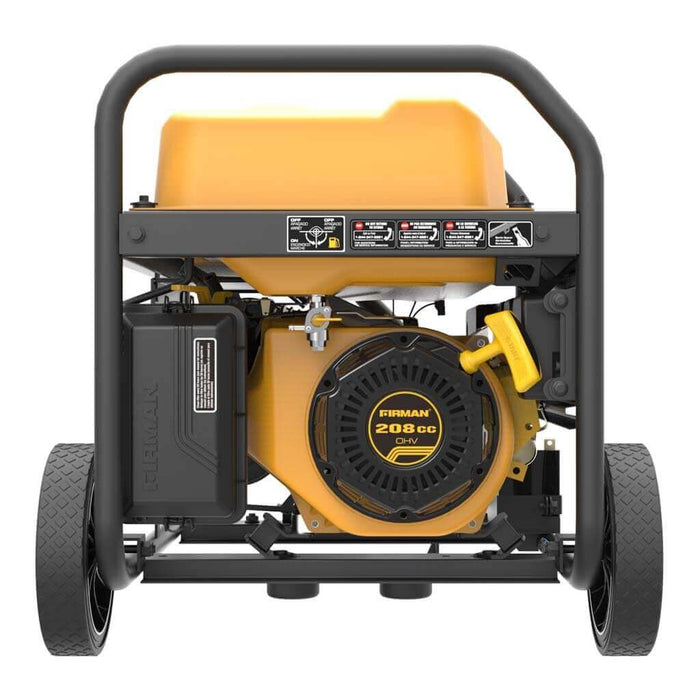

- Max Pro Series 208cc FIRMAN Engine
- Phoenix Fat Head Block for Enhanced Engine Efficiency
- Legendary 3 Year Warranty Serviced from Our HQ In Phoenix Arizona, USA
- Whisper Series Muffler
- USDA Forest Service Spark Arrester
- 4-in-1 Data Minder Measures Volts, Hertz, Hours and Low Oil Indicator

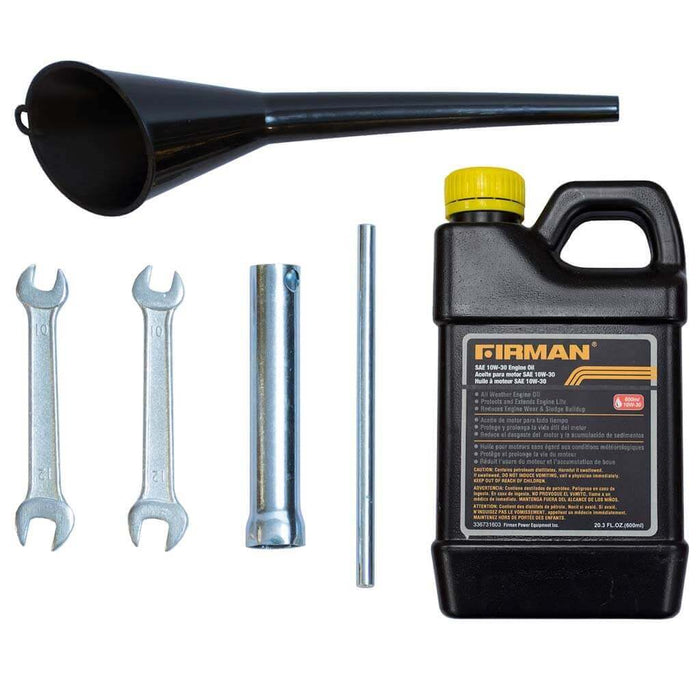

- Accessories Include Oil, Spark Plug Wrench, Assembly Wrenches, Funnel, Quick Reference Guide and Manual
- Durable Compact Tubular Roll Cage Frame Design
- Weight – 128 Lbs
- Carton Measurements – 27”x18.1”x19.8”
- EPA and cETL Certified
- Included bottle opener and remote holder
P03612 Specifications
| REGS | |
| EPA (49 STATES) | YES |
|---|---|
| cETL (CANADA) | YES |
| OUTPUT | |
| Running (RATED) Watts – Gas | 3650 |
| Starting (SURGE) Watts – Gas | 4550 |
| AC Voltage (VOLTS) | 120/240 |
| Engine Displacement (cc) | 208 |
| Recoil Start | YES |
| Electric Start | YES |
| Remote Start | YES |
| Low Oil Shut Off | YES |
| Power Stream Alternator | YES |
| Cast Iron Sleeve | YES |
| Fuel | Gas |
| Excitation System | Brushed |
| THD@Full Load | 26 |
| Runtime @ 50% LOAD | 14 |
| CONTROL PANEL | |
| 5-20R 120V 20A Duplex | 1 |
| TT-30R 120V 30A RV | 1 |
| L14-30R 120V/240V 30A Twistlock | 1 |
| Outlet Cover | YES |
| Voltage Selector | YES |
| Engine ON/OFF Switch | YES (Push Button) |
| Phoenix Fat Head Block | YES |
| Battery Switch | YES |
| Programming Button for Remote | YES |
| FUEL SYSTEM | |
| Tank Size (Gallon/Litre) | 5.0/19.0 |
| Steel/Plastic | Steel |
| Fuel Gauge on Cap | YES |
| Bottle Opener | YES |
| WHEEL KIT | |
| Wheel(Size/Type/Color) | 8.0″ -Black -Plastic -Flat Free |
| Handle | Single Folding w/ Grip |
| Foot Bracket | Hat Shape w/ 2xRubber Isolator |
| USDA FS Certified Spark Arrester | YES |
| ACCESSORIES | |
| Engine Oil (Bottle) | YES |
| Oil Funnel | YES |
| Tool Kit | SP wrench – 2xOpen Wrench 10×12 |
| Remote Control | YES |
| Volt Lock Automatic Voltage Regulator | YES |
| Remote Holder | YES |
Packaging
| LXWXH (inch) (CARTON) | 27”x18.1”x19.8” |
|---|---|
| NET WEIGHT (unit with wheel kit)(lbs) | 119.5 |
| GROSS WEIGHT (unit with wheel kit, accessories, carton, foams, insert) (lbs) | 128 |
| UPC | 840876136126 |
Warranty
| Residential / Commercial | 3 years Ltd / 90 days |
|---|
