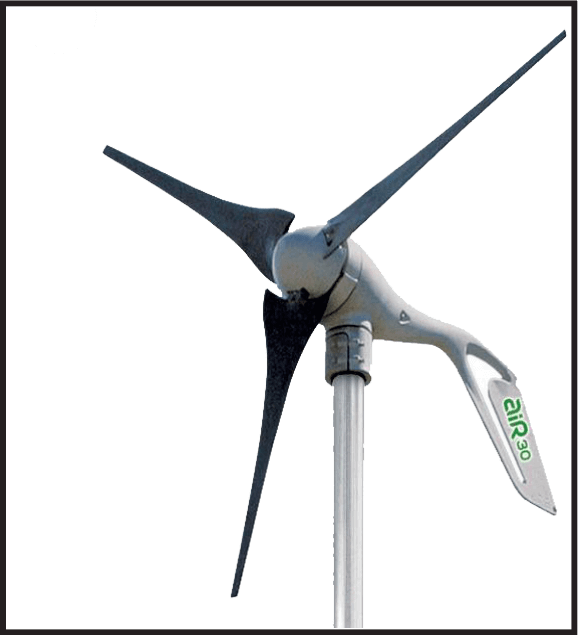

Primus Wind Power Air 30

$1,199.00 CAD

AIR 30 TURBINE

Optimum energy in high wind environments

When you need energy, our AIR 30 delivers. It's hands down the best energy choice for off-grid land-based applications in high wind environments. Use it for SCADA, telecom, security, cathodic protection -- you name it. With optimized software, AIR 30 consistently delivers energy where it matters. The AIR 30’s heavy-duty design can withstand most high wind environments. The AIR 30 is an ideal turbine for hybrid combinations with solar PV. Not for use in marine environments. AIR 30 is built and backed by the worldwide leader in small wind.

Highlights

  • Made in Denver, Colorado, USA
  • 5 Year Warranty and product support from Primus Wind Power
  • High-quality, third-party tested components for reliability and safety
  • Advanced microprocessor technology for superior performance and high wind protection without mechanical braking.
  • Lightweight design is simple and easy-to-install; integrated controller for plug-and-play operation
  • Pair with solar PV for redundant energy production year-round.
  • Produces 30 kWh of energy a month* for land-based, high wind applications

Air 30 Certifications

  • Restrictive of Hazardous Substances (RoHS) Compliance
  • Canadian Standards Association (CSA) International Certificate of Compliance
  • CE Declaration of Comformity (for battery charging applications only)

  • Download the AIR 30 manual
  • Download the AIR 30 spec sheet

    Technical Specifications

    • Energy: Approx. 30 kWh/mo at 5.8 m/s (13 mph)
    • Swept Area: 1.07 m2 (11.5 ft2)
    • Rotor Diameter: 1.17 m (46 in)
    • Weight: 5.9 kg (13 lb)
    • Shipping Dimensions: 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb)
    • Startup Wind Speed: 3.58 m/s (8 mph)
    • Voltage: 12, 24 and 48 VDC
    • Turbine Controller: Microprocessor-based smart controller
    • Body: Permanent mold cast aluminum
    • Blades: (3) Injection-molded composite
    • Alternator: Permanent magnet brushless
    • Overspeed Protection: Electronic torque control
    • Survival Wind Speed: 49.2 m/s (110 mph)
    • Mount: 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter
    • Wind Speed Operating Range: 3.6-22 m/s (8-49 mph)
    • Optimum Wind Speed Range: 11-15 m/s (25-32 mph)

Please note: Tower kit sold separately

Download the Tower Site Selection guide

New to wind turbines? Not sure what model is right for you? Check out the product selection guide HERE
