Samlex SAM-1500C-12 Modified Sine 1500w Inverter + Charger

Product Description

Model: SAM-1500C-12

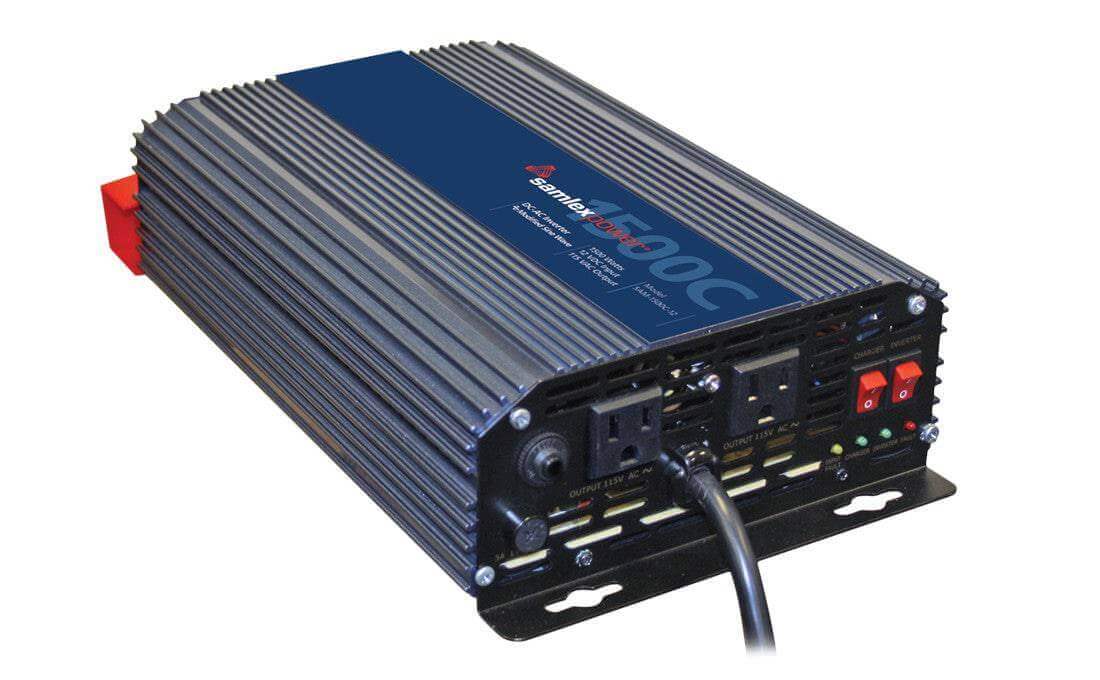

This all-in-one robust unit integrates a 1500W Modified Sine Wave Inverter, 30A Transfer Switch and a Two Stage 12V, 15 Amp Battery Charger. The transfer switch automatically detects utility or generator power and seamlessly transitions to your battery bank when grid power is unavailable. Also provides safe and rapid charging of 12V battery bank when gird power is available.

Design Features:

  • Integrated 1500W Modified Sine Wave Inverter, 30A Transfer switch, and 2 Stage 12 VDC, 15A Battery Charger
  • High efficiency, lightweight, and compact for easy installation
  • Separate ON/OFF control for Inverter and Battery Charger for selectable operation as inverter, charger or UPS function
  • 4 color LED indicators to monitor operational status
  • Load controlled fan for efficient cooling when required
  • Allows use of higher capacity external 12V battery bank for longer backup time
  • Neutral to Ground Bond Switching Relay for grounding compliance
  • Electronic protections including GFCI when in Inverter Mode
  • Ideal for RV’s, Trucks and remote housing

Applications:

  • Uninterrupted AC backup power during residential power outages
  • 12V Battery charging
  • RV’s, trucks and remote housing

Specifications:

OUTPUT - INVERTER MODE

  • CONTINUOUS ACTIVE OUTPUT POWER 1500W (POWER FACTOR = 1)
  • MAXIMUM SURGE POWER 3000W (<1 SEC; POWER FACTOR = 1)
  • NOMINAL OUTPUT VOLTAGE 115 VAC, +10% / -5%
  • OUTPUT FREQUENCY 60 HZ ± 5%
  • PEAK EFFICIENCY 90% (@ 50% LOAD)
  • INVERTER ON/OFF CONTROL BY FRONT PANEL SWITCH

OUTPUT - GRID PASS THROUGH

  • NOMINAL VOLTAGE, FREQUENCY OF GRID 120 VAC, 60 HZ
  • MAXIMUM POWER 1500W (POWER FACTOR = 1; BATTERY FULLY CHARGED)

INPUT – BATTERY

  • BATTERY SYSTEM VOLTAGE 12V (10.5V TO 15.5V ± 0.5V)
  • DC CURRENT DRAW FROM BATTERY AT RATED OUTPUT POWER 150A
  • DC NO LOAD CURRENT DRAW IN INVERTER MODE 0.65A TO 0.85A

INPUT – GRID

  • NOMINAL VOLTAGE, FREQUENCY 120 VAC, 60 HZ
  • MAXIMUM AC INPUT CURRENT - GRID PASS THROUGH 15A (PROTECTED BY 15A BREAKER)

TRANSFER SPECIFICATIONS

  • CURRENT RATING OF TRANSFER RELAY 30A
  • TRANSFER TIME FROM GRID TO INVERTER 2 TO 3 SECONDS
  • TRANSFER TIME FROM INVERTER TO GRID UP TO 1 SECOND

BATTERY CHARGER

  • CHARGING ALGORITHM 2 STAGE CHARGER - BULK & FLOAT
  • FLOAT VOLTAGE 13.8V ± 0.3V
  • BULK CHARGE/MAX. CHARGING CURRENT 15A
  • MAXIMUM AC INPUT CURRENT < 5A
  • AC INPUT POWER FACTOR 0.6
  • VOLTAGE & CURRENT RATING OF FUSE/BREAKER 125V/250V, 5A
  • CHARGER ON/OFF CONTROL BY FRONT PANEL SWITCH

PROTECTIONS

  • OVERLOAD SHUTDOWN YES. MANUAL RESET.
  • LOW BATTERY INPUT (VOLTAGE) ALARM 10.8 ± 0.3V
  • LOW BATTERY (INPUT) VOLTAGE SHUTDOWN 10.5 ± 0.3V
  • BATTERY (INPUT) OVER VOLTAGE SHUTDOWN > 15.5V
  • COOLING - LOAD CONTROLLED FAN INVERTER MODE: ON AT 85W
  • CHARGING MODE: ON AT CHARGING CURRENT > 3A ± 1A
  • OVER TEMPERATURE SHUTDOWN YES. AUTO RESET
  • GROUND FAULT SHUTDOWN YES. MANUAL RESET.
  • DC INPUT REVERSE POLARITY FUSE 240A (8 PCS. 30A AUTOMOTIVE TYPE ATC FUSES IN PARALLEL)

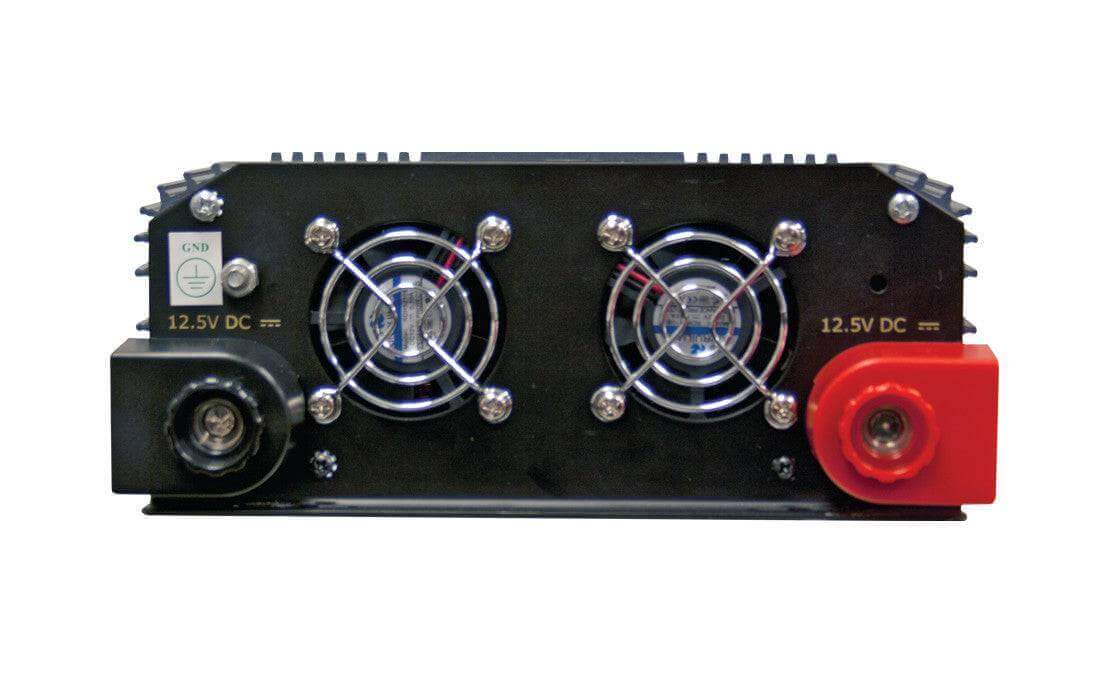

CONNECTIONS

  • DC INPUT NUT & BOLT, M9
  • AC INPUT / AC OUTPUT 6 FOOT CORD WITH NEMA5-15P PLUG / 2 X NEMA5-15R OUTLETS

GENERAL

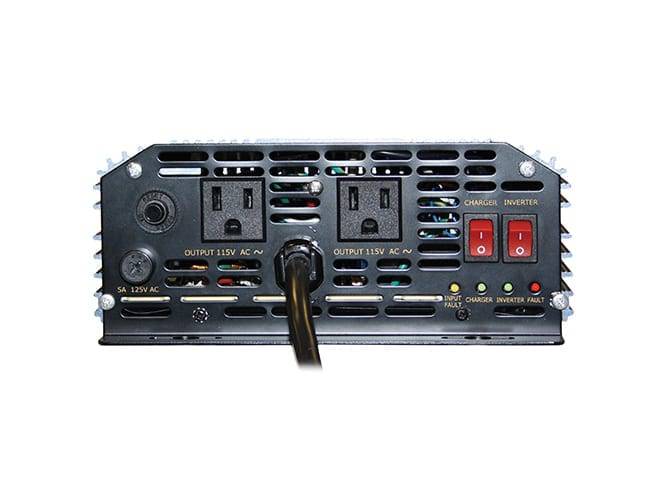

  • LED DISPLAY GREEN “INVERTER”; GREEN “CHARGER”; RED “FAULT”; YELLOW “INPUT FAULT”
  • OPERATING TEMPERATURE RANGE (MIN. TO MAX.) 0°C TO 25°C / 32°F TO 77°F AT 100% LOADING; 26°C TO 35°C / 78.8°F TO 95°F AT 80% LOADING
  • OPERATING HUMIDITY < 80%; NON-CONDENSING
  • DIMENSIONS (W X D X H) 202 X 345 X 84 MM / 7.95 X 13.58 X 3.30 IN
$419.99 CAD
