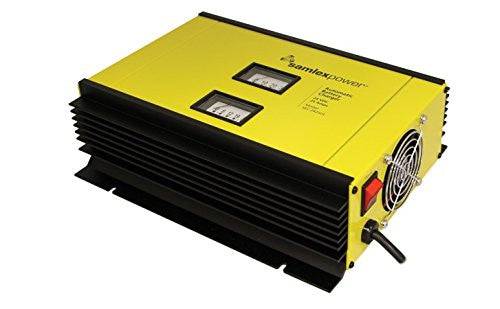

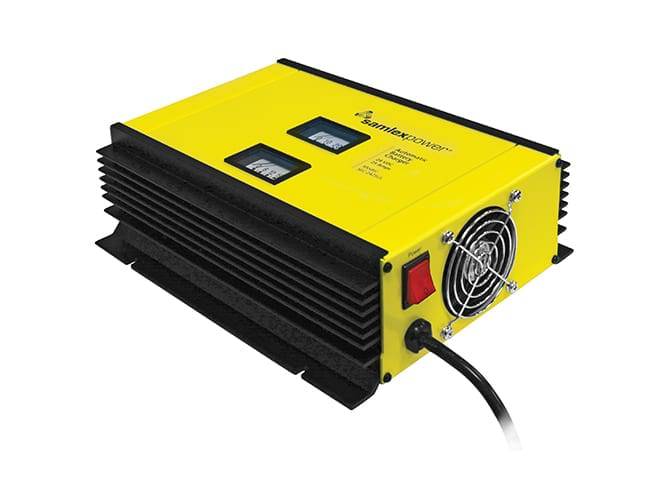

Samlex America SEC-2425UL Battery Charger

by Samlex

Samlex SEC-2425UL Automatic 24V Switch Mode Battery Charger; Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell; User Configurable AC Input voltage 120 or 230 VAC, 50/60 Hz This advanced fully automatic three-stage 25 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries (Flooded/Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively.

Key Features Switch mode technology for high efficiency, lightweight and quiet operation Can charge 2 banks of batteries simultaneously, no isolator necessary Can be used as a power supply or DC UPS when used in conjunction with a battery User Selectable (by DIP Switch) Selectable for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries Voltmeter and Ammeter for monitoring

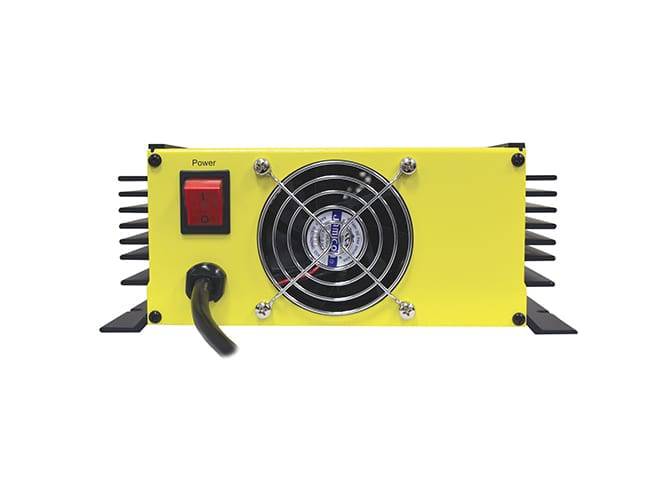

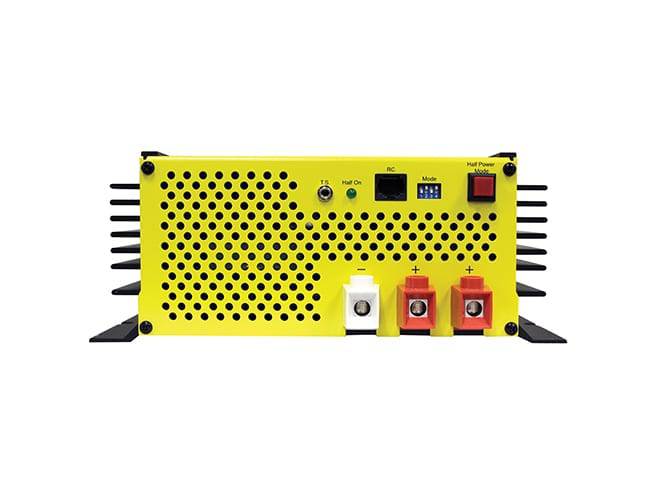

Protections: Short circuit, overload, reverse battery polarity Fan cooled based on output current Safety certified and listed to UL Standard UL-1564 EMI Compliant to FCC Part 15(B), Class B Specifications Nominal Input Voltage (pre-set): 120 VAC, 60 Hz Internal Jumper Change: 230 VAC, 50 Hz Input Current: 10.1A / 5.5A Output Voltage, Boost: 28V / 28.8V ± 0.05V Output Voltage, Float: 27.5 V ± 0.05V Output Amps: 250A Output Connectors: Terminals with tubular holes (0.315" Dia) and set screw (M8) Operating Temperature Range: 0 - 40°C/32°F - 104°F Dimensions (LxWxH): 13.3" x 9.60" x 3.82" Weight: 9 lbs
