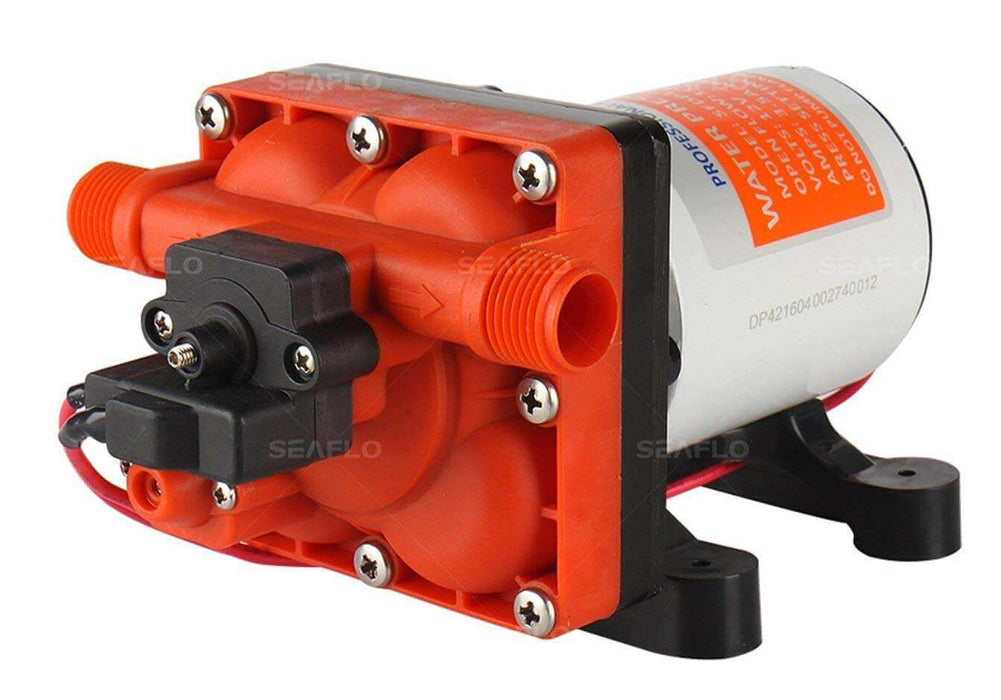

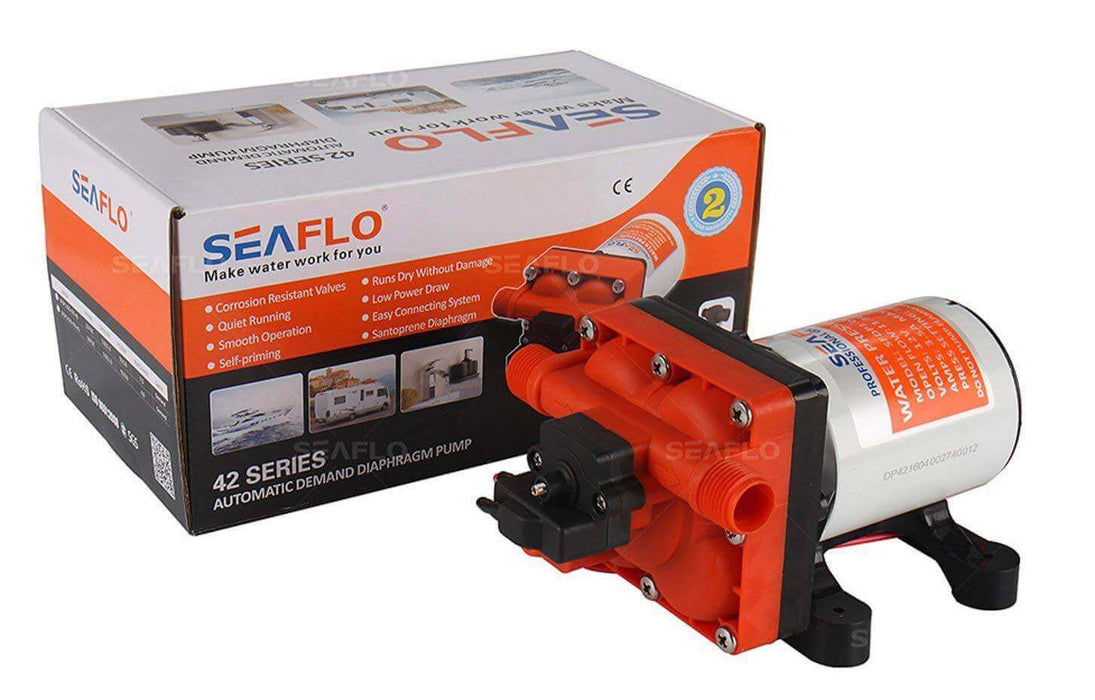

SEAFLO 42-Series Water Pressure Diaphragm Pump w/ Internal Bypass - 12V, 3.0 GPM, 55 PSI
Meet our newest addition to our diaphragm pumps: the 42 series. It retains the raw power and pressure of its predecessors, but also can adapt to situations where huge flow is not needed. Compact but capable, it is a great fit for tight spaces. It may also be configured with different inlet types, each with their own unique fittings to be sure that it fits any application you can require. It also features an internal bypass to reduce pump cycling. No accumulator tank needed! Our 42-Series will perform optimally under both high flow and low flow. It also features self-priming and priming up to 6 vertical feet while operating quietly during any application. This pump is capable of running dry and even contains a built-in check valve. Lastly, as will all SEAFLO products, it comes with a 4-Year Limited Warranty!
-Max Flow: 3.0 GPM
-Electrical: 12V DC
-Inlet: 1/2" -14 MNPT / Outlet: 1/2" -14 MNPT
-Weight: 4.0 lbs (2.5 kg)
-Pressure: 55 PSI
-Max Amperage: 7.5
-4 Year Warranty
- 1 x
- 1 x Warranty Information
- 1 x Installation Instructions

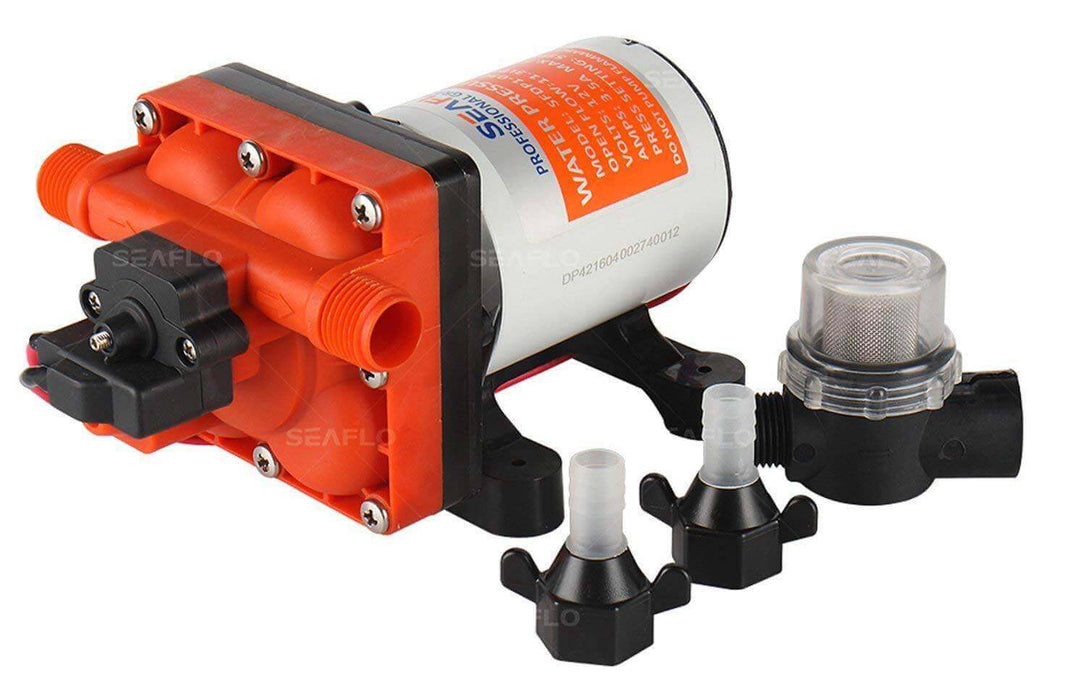

- 2 x 1/2" Barbed Hose Adaptors

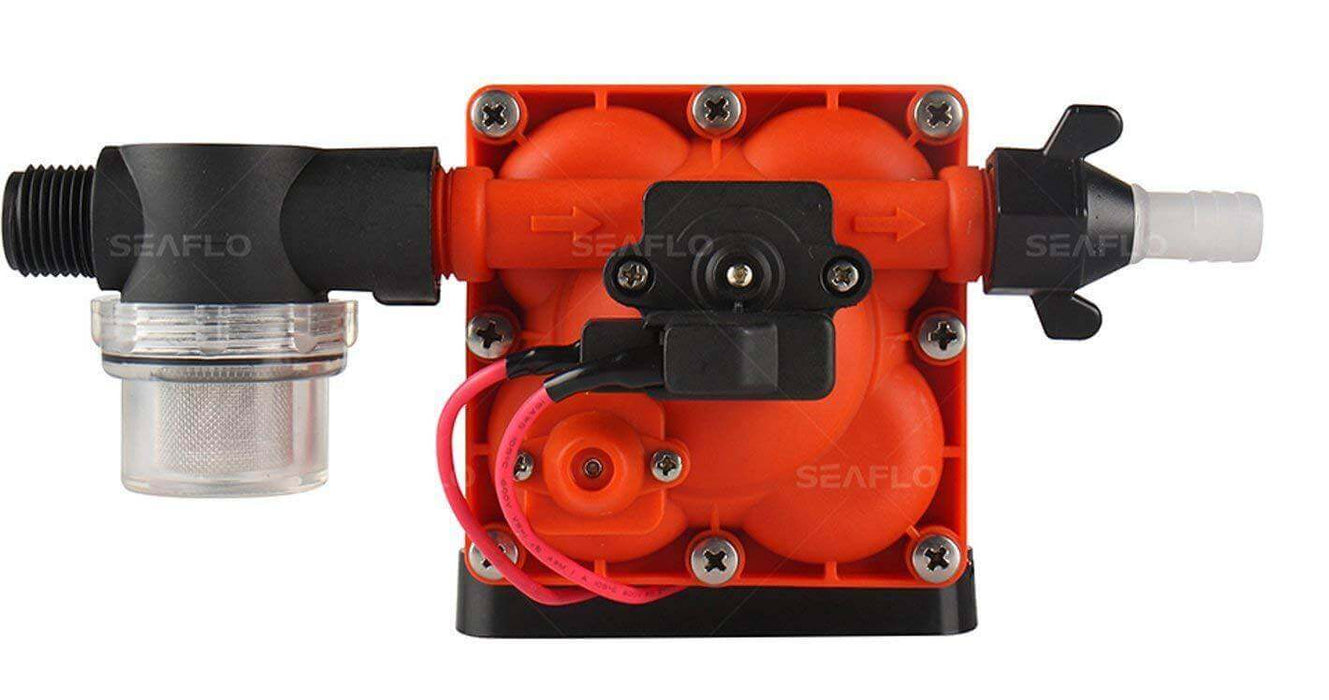

- 1 x 50 Mesh Strainer/Filter
Marine,RV,Agricutural Spraying,General Industial,Filtration,Beverage Processing,Solar Water System.

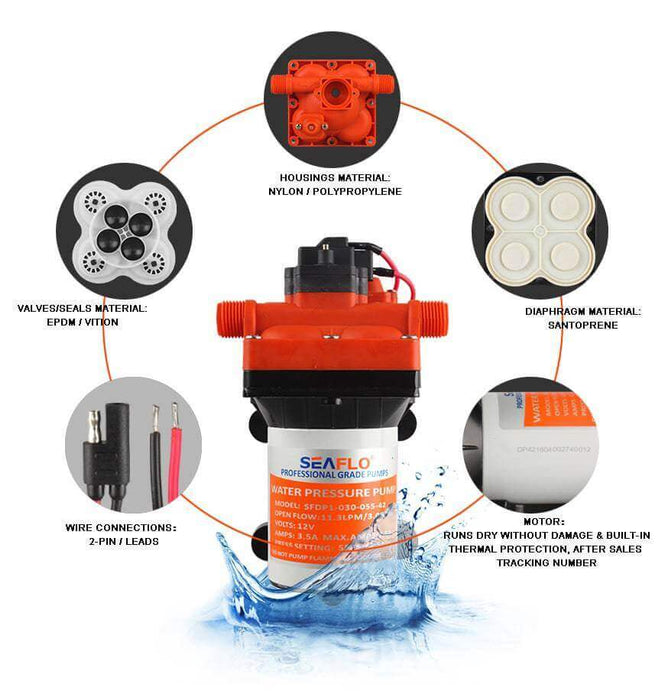

|4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
|Pressure switch & By pass control
|Max Recommended Temperature
|60° C（140° F）
|6 feet (1.8 m) suction lift
Shut-off Pressure 55PSI : 41 PSI ±5 PSI (±0.3 bar)
|4.0 lbs (1.9 kg)
|16 AWG, 9.4" (24cm) long with 2-Pin connector/Leads
STANDARD PUMP CONFIGURATIONS
|3.0 / 11.3
|switch & By pass
|55 / 3.8
|3.0 / 11.3
|switch & By pass
|55 / 3.8
Consult factory for other available models.

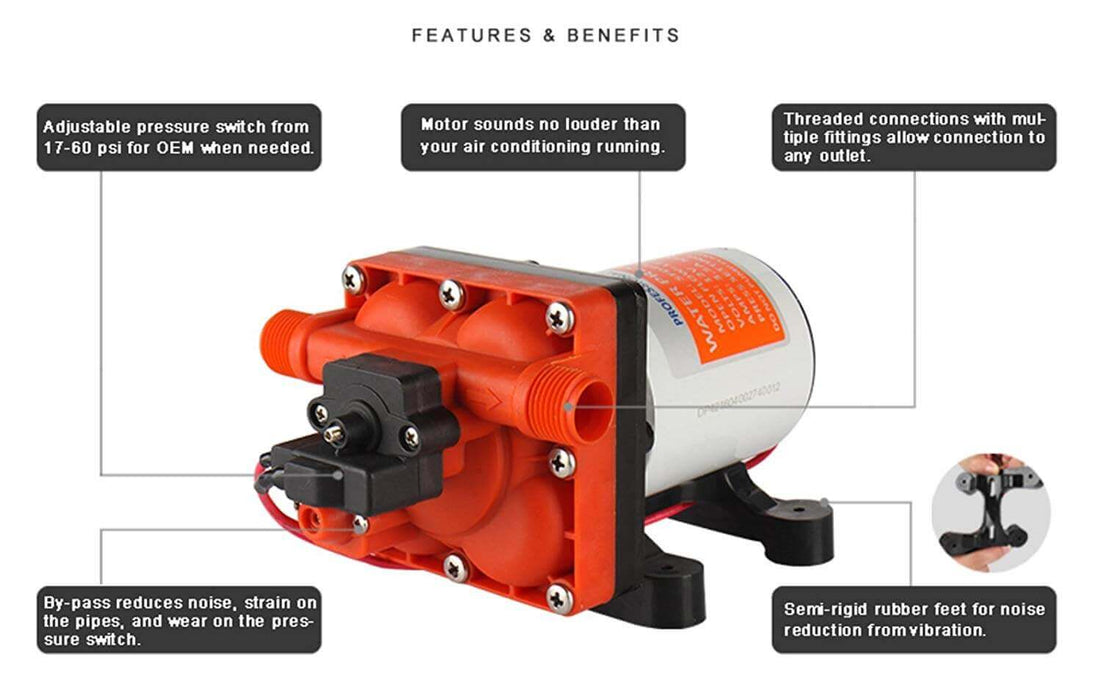

MORE FEATURES & BENEFITS
-Run dry safe
|-Internal bypass technology reduces cycling
-2 Year Warranty
- Meets or exceeds RoHS, SGS, and ISO standards
