SEAFLO 12v Diaphragm Pump 3GPM 60PSI w/ 8L Pressure Tank

by SEAFLO
$187.49 USD

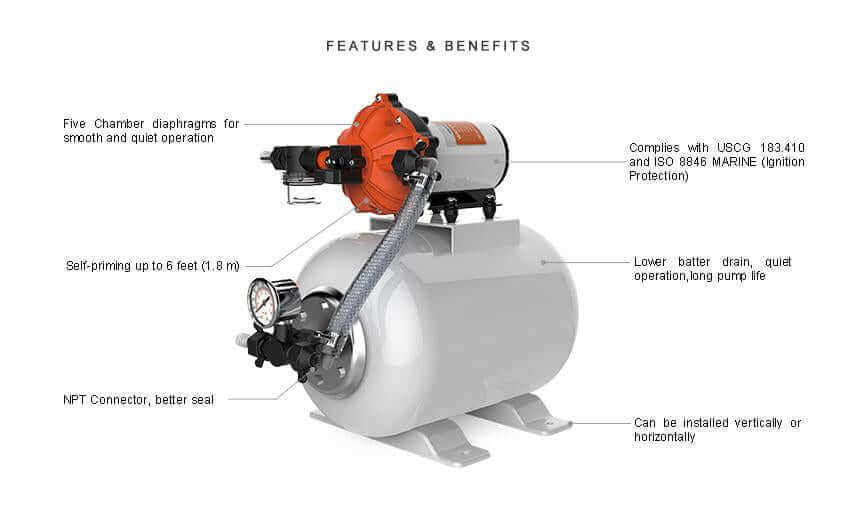

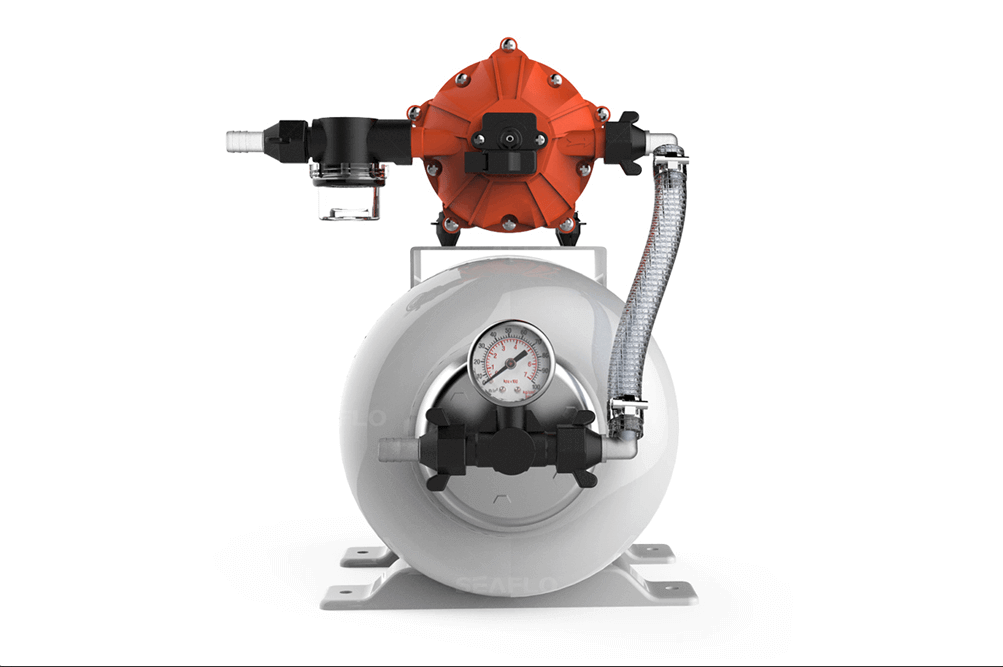

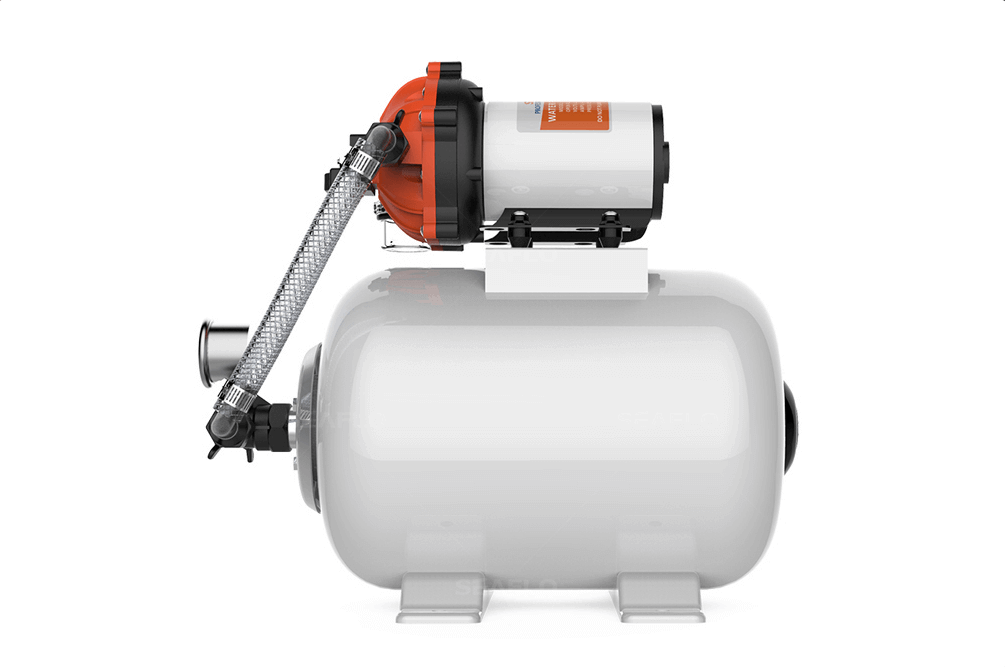

A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 5 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a rubber mounted board. Serves 3 or more 1/2" (13mm) outlets.

Model SFWSK1-030-060-0021
Tank Volume 8L
Voltage 12V
Control Type Switch

Open Flow (GPM/LPM)

3.0 / 11.5
Pressure On (PSI/BAR) 40 / 2.8
Pressure Off (PSI/BAR) 60 / 4.2
Max Draw 10.0A
Ports 1/2" barb
Wire Connections 2-Pin/Leads
PUMP
Type 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type Pressure switch
Max Recommended Temperature 60° C(140° F)
Priming Capabilities 6 feet (1.8 m) suction lift
Re-start Pressure

Shut-off Pressure 60 PSI :48 PSI ±5 PSI (±0.3 bar)

Inlet/Outlet Ports 1/2"-14 MNPT
Weight 11.9 lbs (5.4 kg)
MOTOR
Leads

14 AWG, 13" (33cm) long with 2-Pin connector/Leads

Duty Cycle

Continuous

Max.Amp Draw

18.9A

Fuse 28.4A
