SEAFLO 24v Diaphragm Pump 3GPM 60PSI w/ 8L Pressure Tank

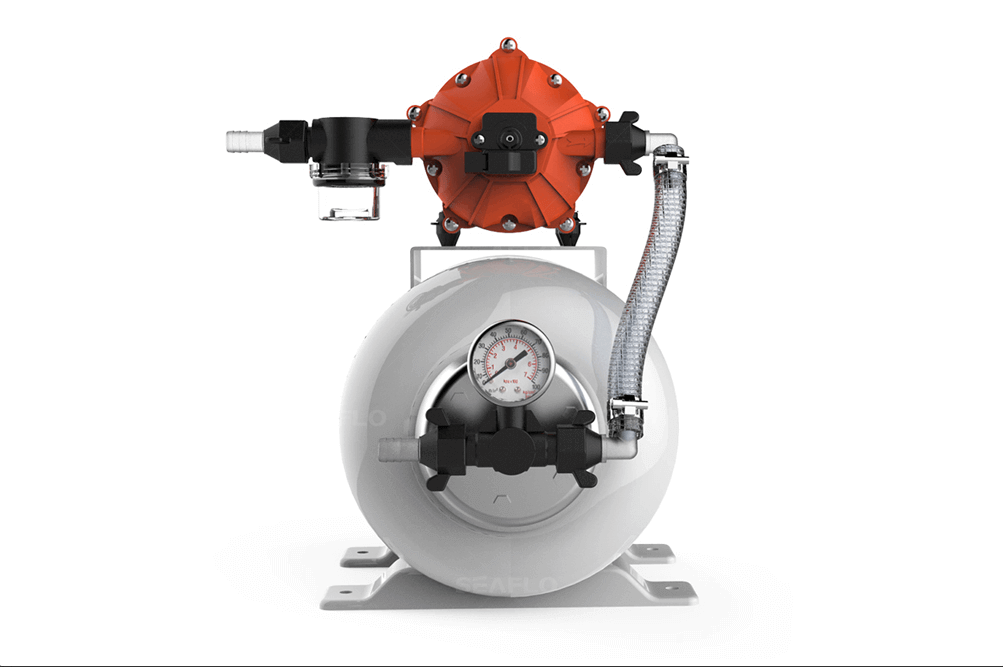

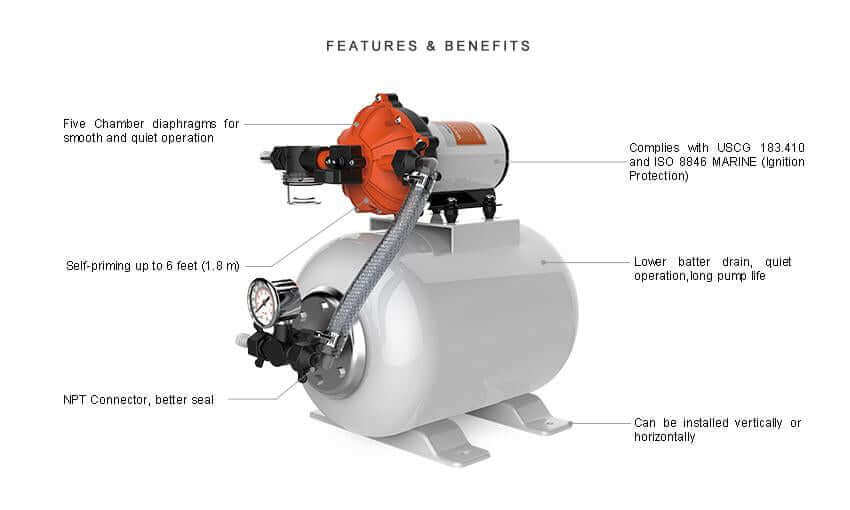

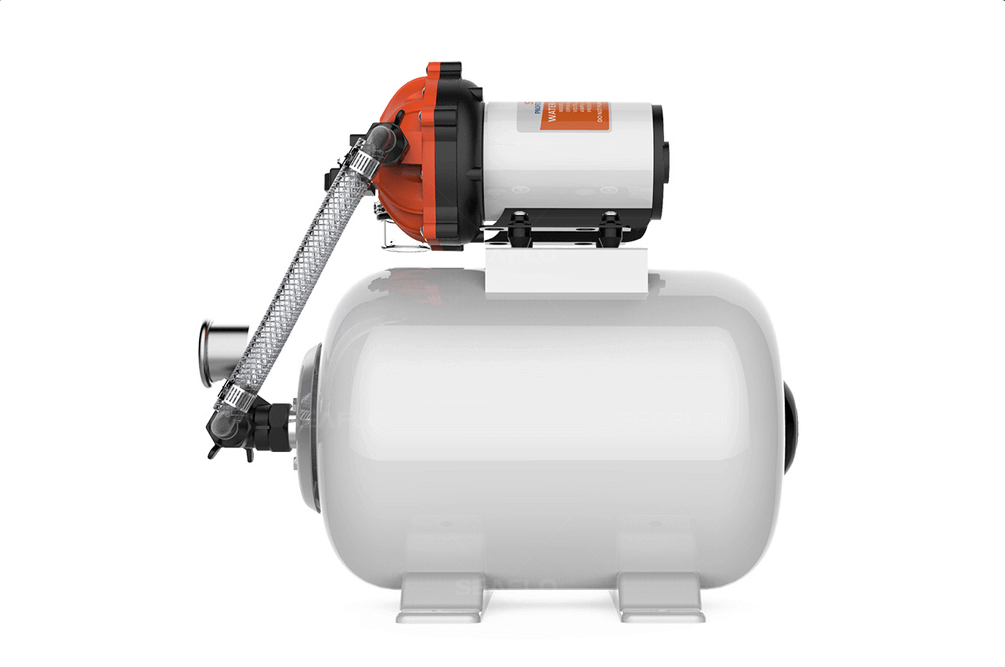

A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 5 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a rubber mounted board. Serves 3 or more 1/2" (13mm) outlets.
Model |
SFWSK1-030-060-0021 |
Tank Volume |
8L |
Voltage |
12V |
Control Type |
Switch |
Open Flow (GPM/LPM)
|
3.0 / 11.5 |
Pressure On (PSI/BAR) |
40 / 2.8 |
Pressure Off (PSI/BAR) |
60 / 4.2 |
Max Draw |
5.5A |
Ports |
1/2" barb |
Wire Connections |
2-Pin/Leads |
PUMP |
Type |
5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
Control Type |
Pressure switch |
Max Recommended Temperature |
60° C(140° F) |
Priming Capabilities |
6 feet (1.8 m) suction lift |
Re-start Pressure |
Shut-off Pressure 60 PSI :48 PSI ±5 PSI (±0.3 bar)
|
Inlet/Outlet Ports |
1/2"-14 MNPT |
Weight |
11.9 lbs (5.4 kg) |
MOTOR |
Leads |
14 AWG, 13" (33cm) long with 2-Pin connector/Leads
|
Duty Cycle |
Continuous
|
Max.Amp Draw |
18.9A
|
Fuse |
28.4A |
|
