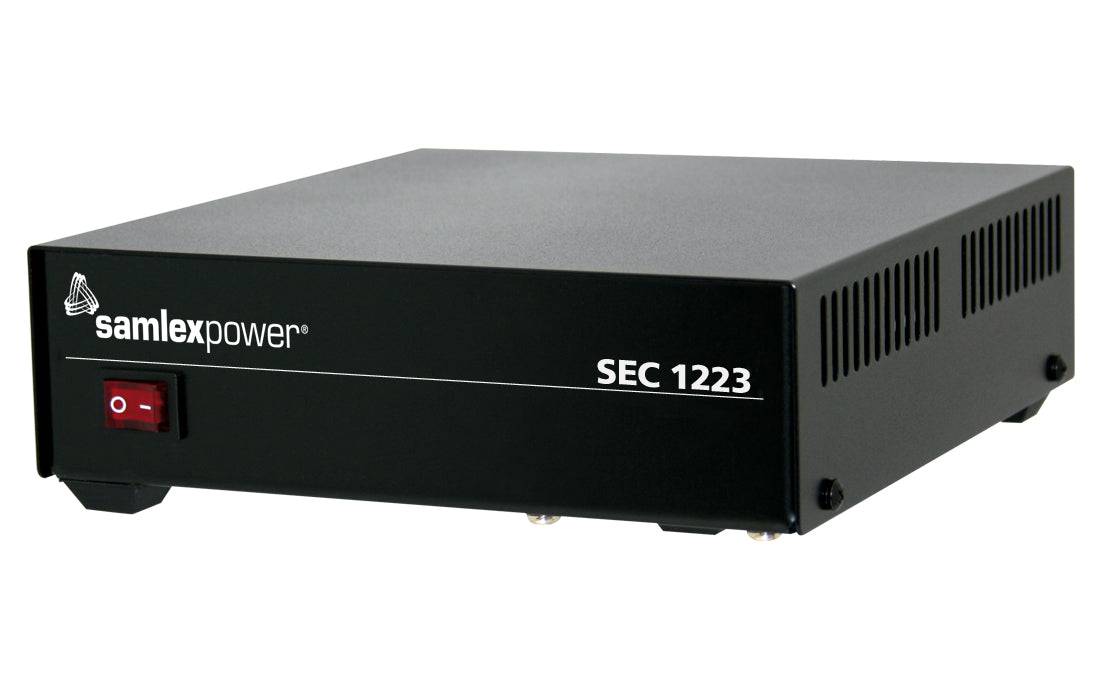

Samlex SEC-1223 AC to DC Converter

by Samlex

Model: SEC-1223


This high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz model also available). These advanced switch-mode DC power supplies were designed specifically for land mobile radio applications.

The SEC-1223 are ideal for applications where a device or appliance requires continuous and reliable 12vDC power. Examples would be:

  • The SunStar line of solar/DC refrigerators and freezers (1 x SEC-1223 can be used on a single DC appliance. While it can work for 2 appliances, the larger SEC-1235 is recommended)
  • Cinderella Freedom incineration toilet (1 x SEC-1223 can service the Cinderella Freedom + 1 appliance above)
  • Applications which have less than a 23A @ 12vDC requirement i.e. 12vDC lighting strings, 12vDC diaphragm pump, 12vDC fans, etc.

The power supply produces clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with standard NEMA 5-15P plug.

Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.


SEC-1223 Specification Sheet
SEC-1223 Product Manual


Input: 100-130 VAC
Output: 13.8 VDC
Amps: 23 Amps
Fuse: 6.3 Amps
Weight: 3.5 (lbs)
Weight: 1.6 (kg)
Dimensions: 7.28 x 8.19 x 2.40 (in)
Dimensions: 18.5 x 20.8 x 6.1 (cm)
Safety: UL, FCC

3 Year Limited Warranty
